Mini-ITX Mainboards
// Mini-ITX Industrial Mainboards
// [AMD Ryzen Embedded R2312 | AMD Ryzen Embedded R2314 | AMD Ryzen Embedded R2514 | AMD Ryzen V1202B | AMD Ryzen V1605B | AMD Ryzen V1756B | AMD Ryzen V1807B]
// 260-pin DDR4 SO-DIMM
// 1 x HDMI
// 1 x Displayport
// 2 x G-LAN
// 4 x USB
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x8
// 1 x Mini-PCIe
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

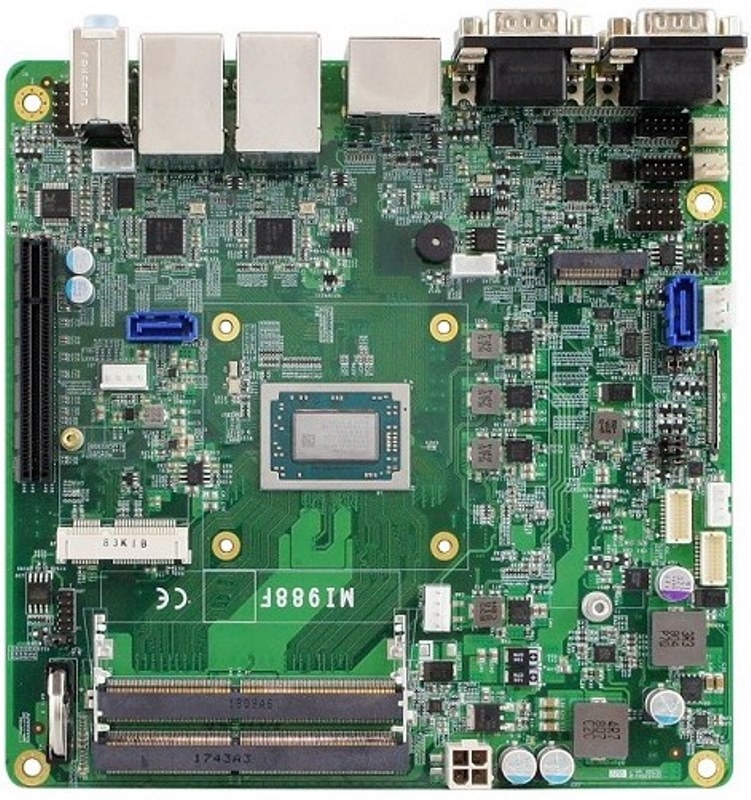

Basic Module: IBASE MI988
| General information | ||||
| SKU / Item Number | MI988 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Number | AMD Ryzen Embedded R2312, AMD Ryzen Embedded R2314, AMD Ryzen Embedded R2514, AMD Ryzen V1202B, AMD Ryzen V1605B, AMD Ryzen V1756B, AMD Ryzen V1807B | ||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 4 Pce, 8 Pce | |||
| Socket | BGA 1140 (FP5) | |||
| Base frequency | 2 GHz, 2,1 GHz, 2,3 GHz, 2,7 GHz, 3,25 GHz, 3,35 GHz | |||
| Cache | 1 MB, 2 MB, 4 MB | |||
| Thermal Design Power (TDP) | 12 W, 15 W, 25 W, 54 W | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 2666 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6116D | |
| Graphics | ||||
| Processor | AMD Radeon Vega | |||
| HDMI | Version | 2.0a | ||
| DisplayPort | Version | 1.2 | ||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| PCIe x8 | x8 signal | 1 Pce | ||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe, 1x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

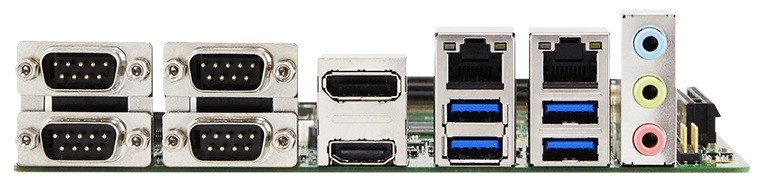

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.1 Gen 1 | 4 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| RS-232 / 422 / 485 | DB-9 | 2 Pce | ||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Internal I/O | ||||
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
