Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// Intel N150
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// Power Supply ATX
// DC 12 to 24V
Sales only to business customers.
Delivery time: upon request

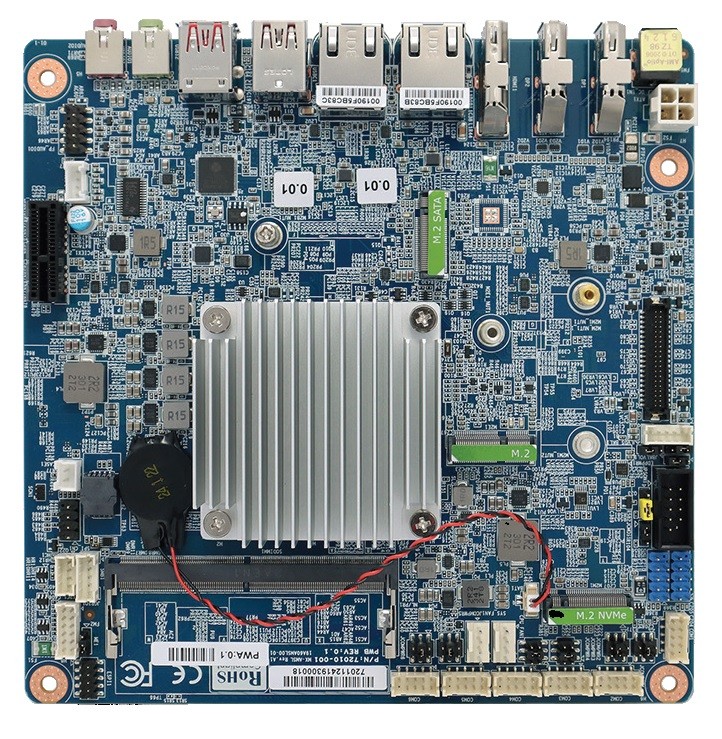

Basic Module: BCM MX150N
| General information | ||||
| SKU / Item Number | MX150N | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Twin Lake | ||
| Number | Intel N150 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6126D | |
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Version | 1.4b | ||
| DisplayPort | Version | 1.4A | ||
| Extension | ||||
| PCIe x1 | x1 Signal | 1 Pce | ||
| PCIe Interfaces | 1x PCIe x1 | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | SATA III, USB 3.2 Gen 1 | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

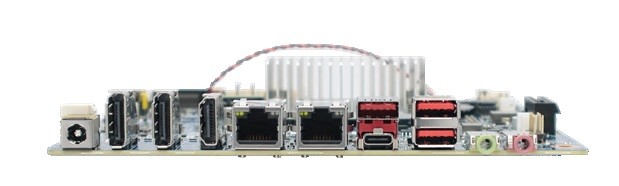

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 3 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| DC | Wide Range | Yes | ||
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 4-Pin ATX (12V DC), DC: 12 to 24V | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows Embedded, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Weight | 400 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | CB, REACH | |||
| RoHS compliant | Yes | |||
