Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// Intel Celeron N3350
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 2 x HDMI
// 1 x Displayport
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 4 x Seriell I/O
// 1 x PCIe x1
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

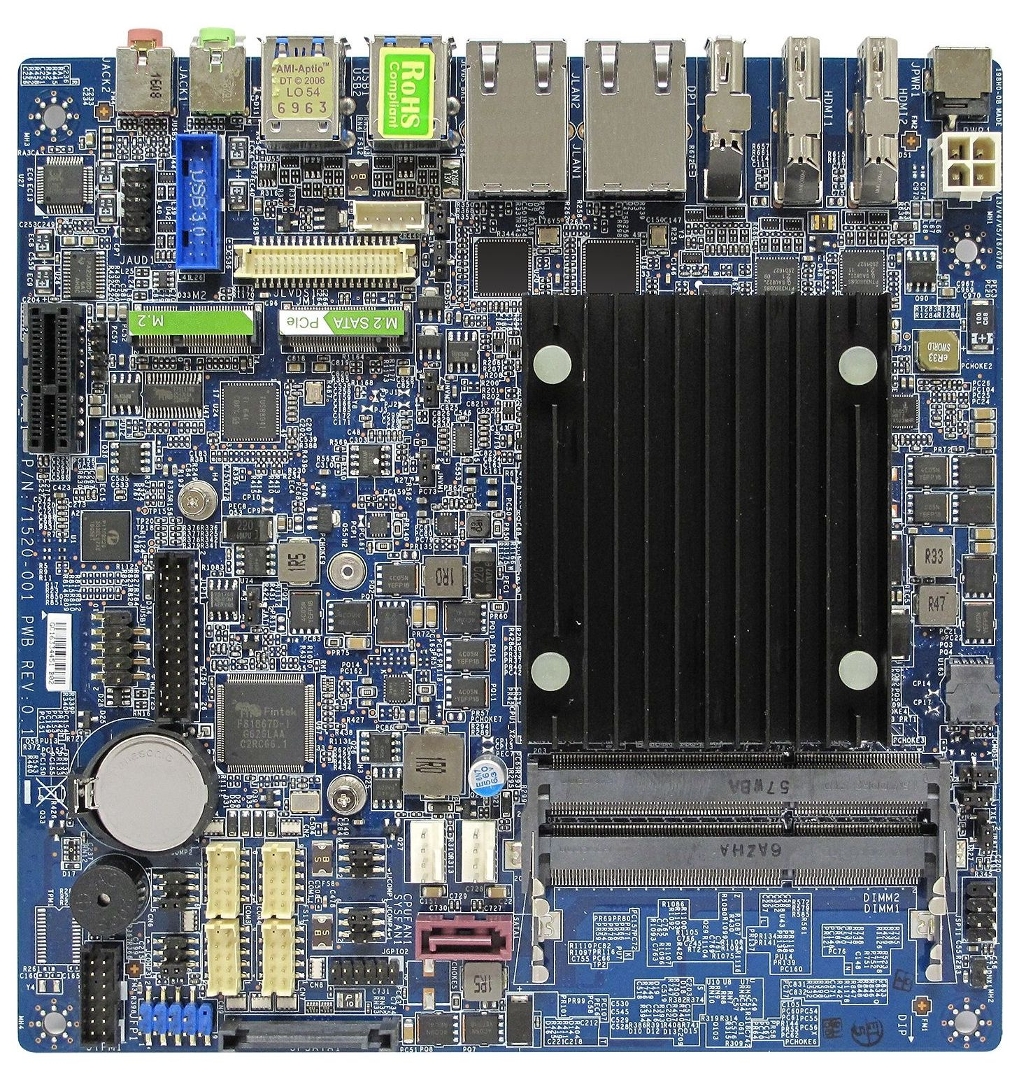

Basic Module: BCM MX3350N
| General information | ||||
| SKU / Item Number | MX3350N | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Celeron N3350 | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| PCIe x1 | x1 Signal | 1 Pce | ||
| PCIe Interfaces | 1x PCIe x1 | |||
| M.2 | Slot 1 | Interface | USB 2.0 | |
| Supported dimensions | 2230 | |||
| Slot 2 | Interface | PCIe ×2, SATA III | ||
| Supported dimensions | 2242, 2280 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Display | HDMI | 2 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| USB 3.0 | Ports (2.54 mm pitch) | 2 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 3 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 1 Pce | ||
| Parallel | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LPC | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 12V, 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
