Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrial Mainboards
// Intel Celeron 3965U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 1 x HDMI
// 2 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x PCIe x1
// Power Supply DC 12 to 24V
Sales only to business customers.
Delivery time: upon request

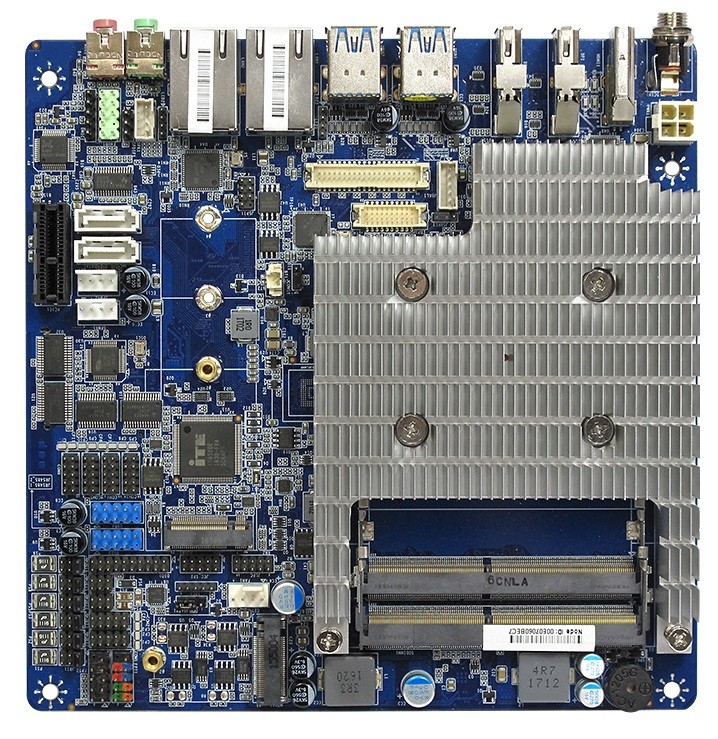

Basic Module: BCM MX3965U
| General information | ||||
| SKU / Item Number | MX3965U | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Kaby Lake | ||
| Number | Intel Celeron 3965U | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 2,2 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM data transfer rate | 2133 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| BIOS | AMI SPI 128 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8528E / FX | |
| Graphics | ||||
| Processor | Intel HD Graphics 610 | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7511B | |||
| Extension | ||||
| PCIe x1 | x1 Signal | 1 Pce | ||
| PCIe Interfaces | 1x PCIe x1 | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | USB 2.0 | |||
| Supported dimensions | 2242, 2260, 2280, 3042 | |||
| Slot 2 | Key ID | A | ||
| Interface | SATA III | |||
| M.2 Key IDs | A, B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | SD / MMC card | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

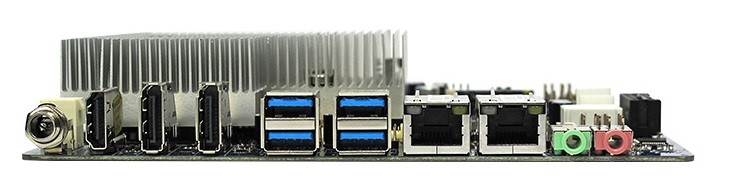

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Display | HDMI | 1 Pce | ||
| DP++ | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| LPC | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| S/PDIF | available | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9665 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| DC | Wide Range | Yes | ||
| Range | 12 to 24V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12~24V, 12~24V | |||
| OS / Software | ||||
| Windows | Windows 8 (32-bit) | is supported | ||
| Windows 8 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | Thin Mini-ITX | ||
| Width | 170 mm | |||
| Deep | 170 mm | |||
| Weight | 400 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
