3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core Ultra 5 Processor 125U | Intel Core Ultra 7 Processor 155U]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

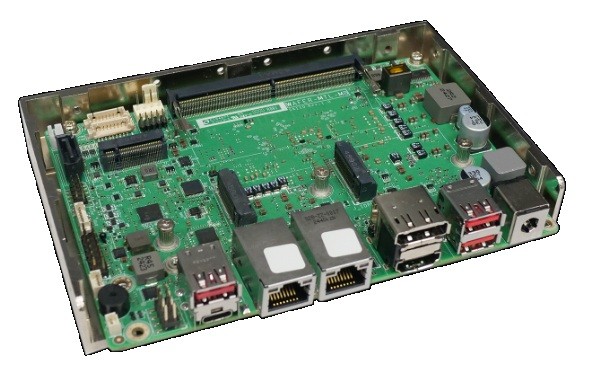

Basic Module: IEI WAFER-MTL
| General information | ||||
| SKU / Item Number | WAFER-MTL | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Number | Intel Core Ultra 5 Processor 125U, Intel Core Ultra 7 Processor 155U | |||
| CPU cores | 12 Pce | |||
| Threads | 14 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,3 GHz, 1,7 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 0,8 GHz, 1,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 12 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 48 GB | |||
| BIOS | AMI UEFI BIOS | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5571 | |
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 4), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 4), USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Audio | ||||
| Chipset | Supports High Definition Audio interface | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

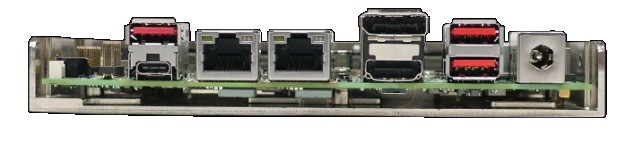

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 3 Pce | ||
| USB v4.0 Type C | Stück | 1 Pce | ||
| Data transfer modes | DisplayPort v.1.4 | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | 1.00 mm pitch | 2 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 28V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12–28V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 350 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
