3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Pentium N4200
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 1 x Seriell I/O
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

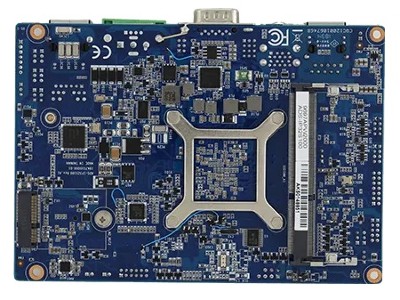

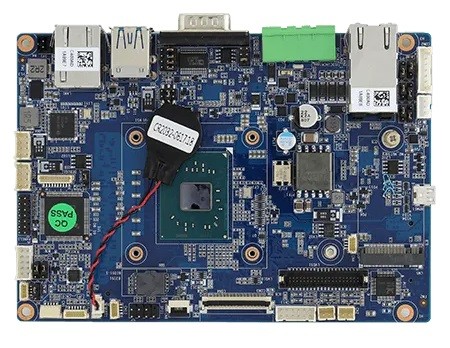

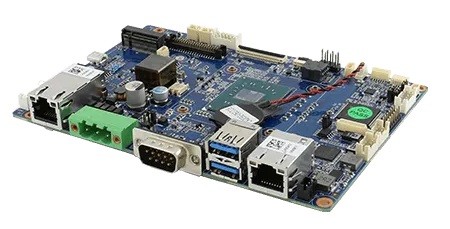

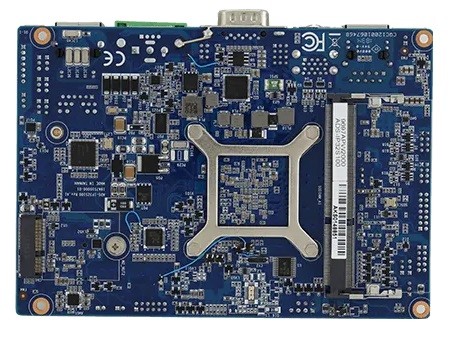

Basic Module: Winmate IP32S
| General information | ||||
| SKU / Item Number | IP32S | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Pentium N4200 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Max Turbo Frequency | 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 1600 / 1866 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 505 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Quantity | 2 Pce | |
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| RJ-45 with PoE | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 14-bit | 1 Pce | |
| UART | Tx/Rx | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 3-pin terminal connector | |||
| PoE (Power over Ethernet) | Connectors | 1 Pce | ||
| Protocol | IEEE 802.3at / 25.5W | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | Batterie header | |||
| Typ (Output) | DC | Range | 5V | |
| Connector | 2-pin connector (horizontal) | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
