5.25" Mainboards
// 5.25" Industrial Mainboards
// [Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// [2 | 3] x G-LAN
// 7 x USB (internal)
// Digital I/O (16-Bit)
// 1 x PCI
// 2 x Mini-PCIe
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

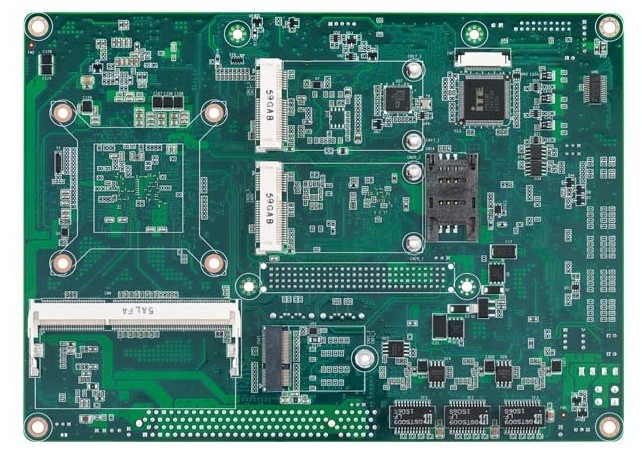

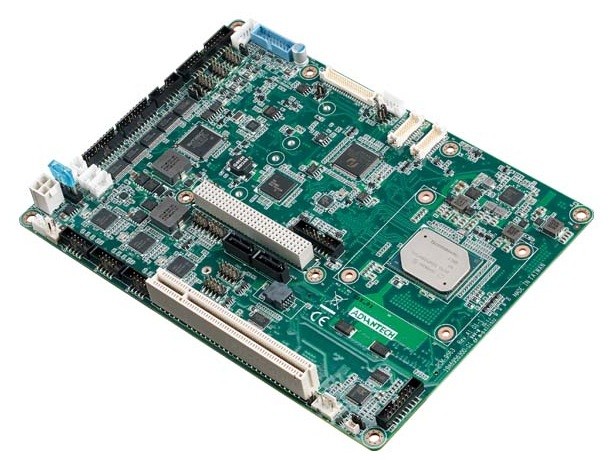

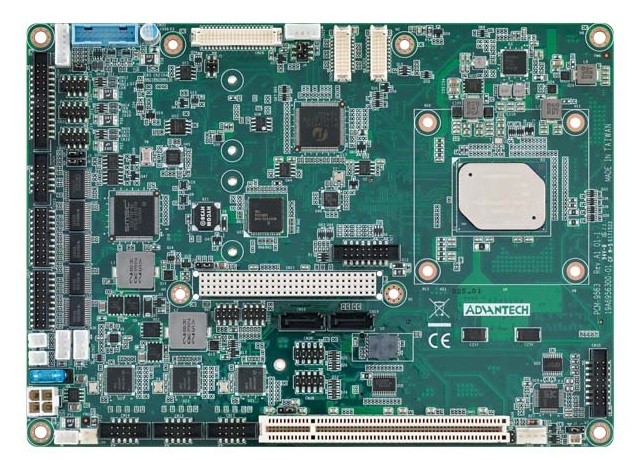

Basic Module: Advantech PCM-9563
| General information | ||||
| SKU / Item Number | PCM-9563 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Max Turbo Frequency | 2,4 GHz, 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 1866 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 500, Intel HD Graphics 505 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Version | 1.4b | |||
| DisplayPort | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Version | 1.2 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 48 bits | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| PCI | Quantity | 1 Pce | ||
| PCI Interfaces | 1x PCI slot | |||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | -, Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| M.2 | Slot 1 | Key ID | E | |
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| PCI-104 | 1 Pce | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce, 3 Pce | |||
| External I/O | ||||
| Ethernet | Interface | 2 Pce, 3 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 6 Pce | |
| USB 3.1 | Key-A Header (20-pin) | 1 Pce | ||
| PS/2 | pin header | 1 Pce | ||
| Parallel | Ports (2.54 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| HDMI Interface | 1 Pce | |||
| VGA (2.54 mm pitch) | 1 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 5.25" | ||
| Width | 203 mm | |||
| Deep | 146 mm | |||
| Weight | 700 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
