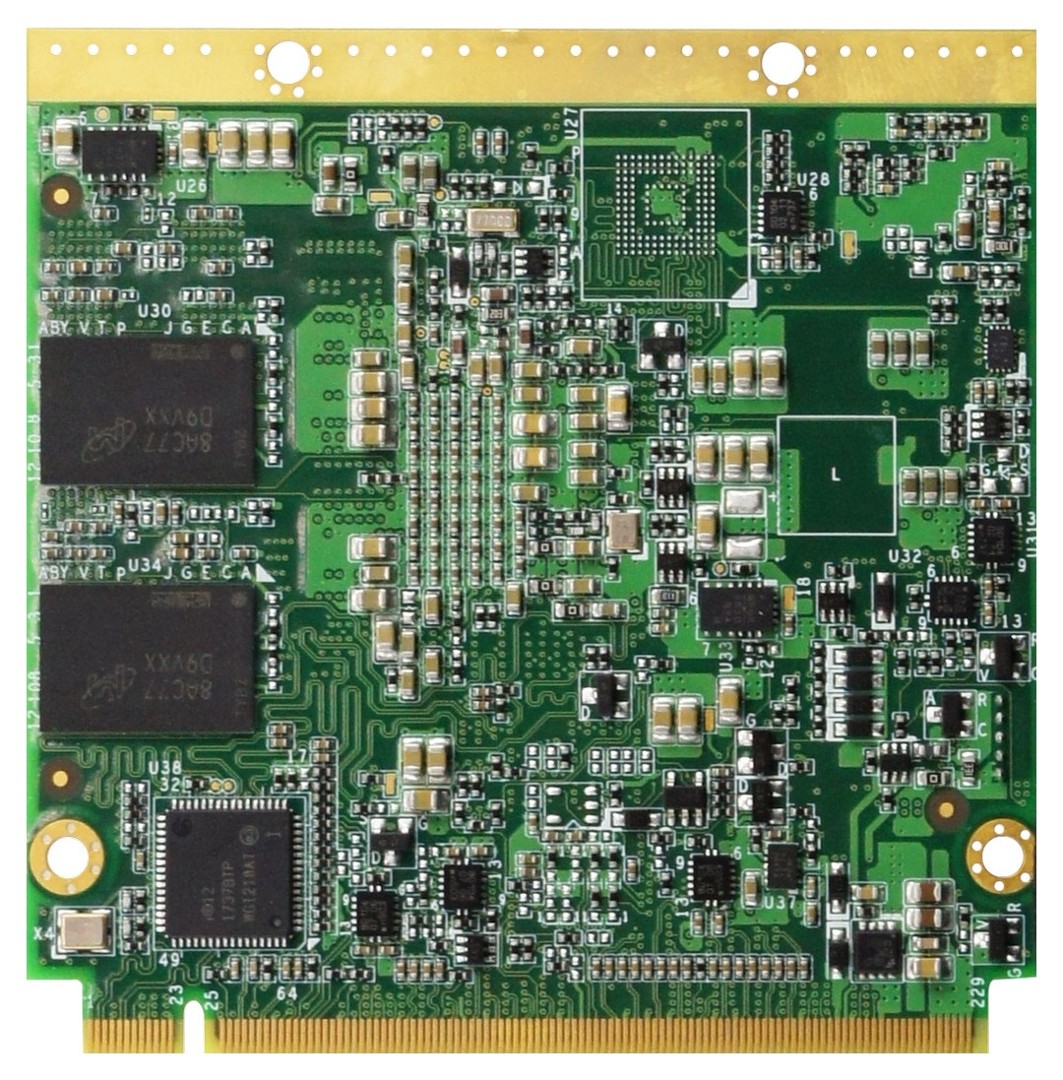

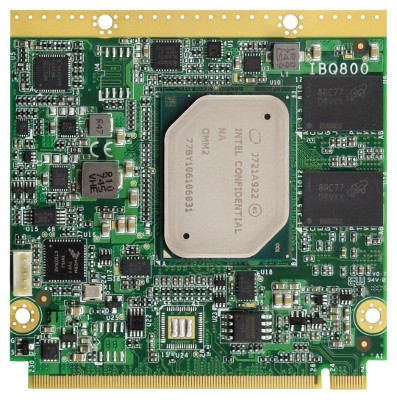

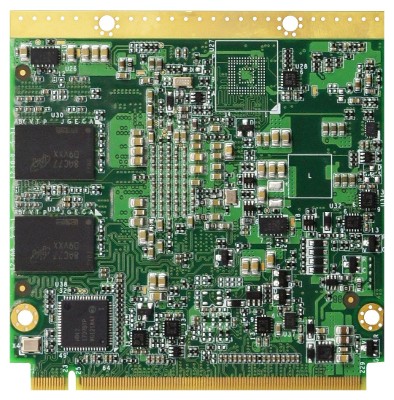

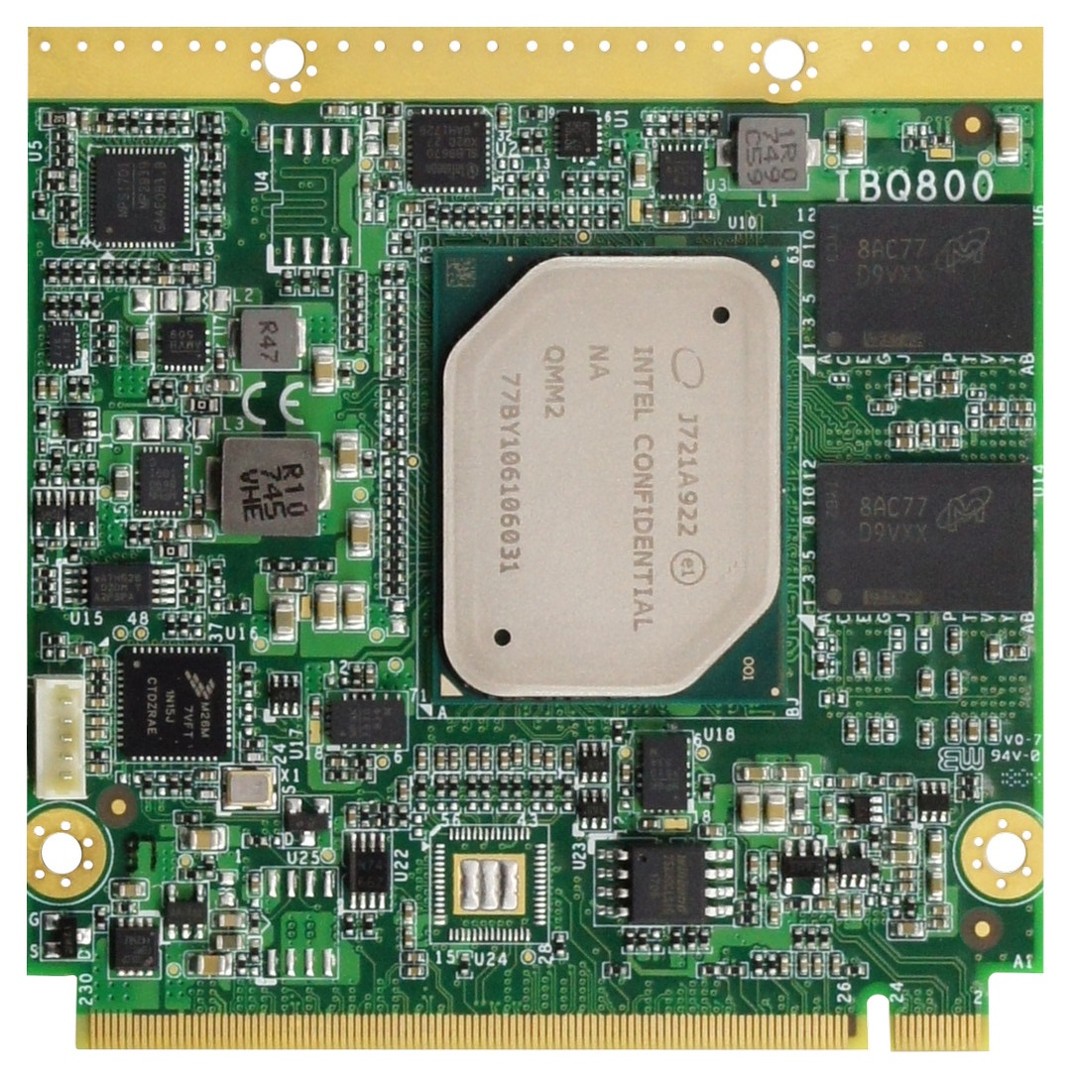

IBASE IBQ800

IBQ800F1-X5(V-B1), IBQ800F1-X5LV(V-B1), IBQ800F1-X5LVe(V-B1), IBQ800F1-X5LVe8G(V-B1), IBQ800F1-X5Q(V-B1), IBQ800F1-X5QLV(V-B1), IBQ800F1-X7(V-B1), IBQ800F1-X7LV(V-B1), IBQ800F1-X7LVe(V-B1), IBQ800F1-X7LVe8G(V-B1)

Qseven (Q7)

PRODUCT FEATURES

// Qseven (Q7)
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950]
// [4 GB | 8 GB]
// 2 x G-LAN
// 7 x USB (internal)
// [32 GB | -] eMMC
// 4 x PCIe x1

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: IBASE IBQ800

General information
SKU / Item NumberIBQ800IBQ800F1-X5(V-B1), IBQ800F1-X5LV(V-B1), IBQ800F1-X5LVe(V-B1), IBQ800F1-X5LVe8G(V-B1), IBQ800F1-X5Q(V-B1), IBQ800F1-X5QLV(V-B1), IBQ800F1-X7(V-B1), IBQ800F1-X7LV(V-B1), IBQ800F1-X7LVe(V-B1), IBQ800F1-X7LVe8G(V-B1)
Product Basic Data
ManufacturerIBASE
System
ProcessorSeriesIntel Apollo Lake
NumberIntel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950
CPU cores2 Pce, 4 Pce
Threads2 Pce, 4 Pce
SocketBGA 1296
Base frequency1,3 GHz, 1,6 GHz
Max Turbo Frequency1,8 GHz, 2 GHz
Cache2 MB
Thermal Design Power (TDP)6,5 W, 9,5 W, 12 W
ChipsetSoC (System on a Chip)
MemoryMemory TypeDDR4
Maximum expansion8 GB
Internal memory4 GB, 8 GB
StorageEmbedded MultiMedia Card (eMMC)32 GB, -
BIOSAMI BIOS
I/O controllerController 1I/O controllerFintek F81804U-I
Graphics
ProcessorIntel HD Graphics 9th Generation
Extension
PCIe x1x1 Signal (Interface)4 Pce
PCIe Interfaces4x PCIe x1
Network
G-LANControllerChipsetIntel I210IT PCIe (10/100/1000 Mbps)
Quantity1 Pce
Network1x G-LAN
External I/O
EthernetInterface1 Pce
RJ-451 Pce
Internal I/O
USBUSB 2.0Interface4 Pce
USB 3.0Interface3 Pce
DisplayLVDS interface1 Pce, -
DDI interface1 Pce
eDP (Embedded DisplayPort) lanes1 Pce, -
UARTTx/Rx/CTS/RTS1 Pce
Serial ATASATA R3.0 (Interface)2 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)v2.0
Mechanical / Environment
TemperatureOperation-40°C to 85°C
Storage-40°C to 90°C
Relative humidityOperation0 to 90%, non-condensing
DimensionsForm factorQseven (Q7)
Width70 mm
Deep70 mm
Manufacturer's warranty
Manufacturer's warranty2 years
