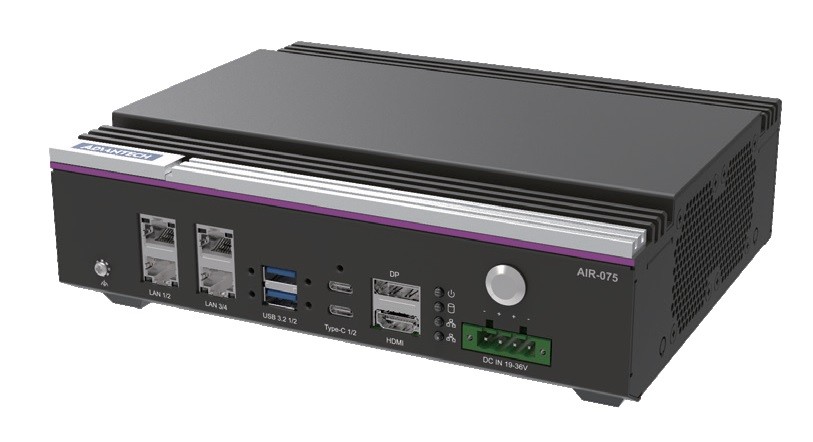

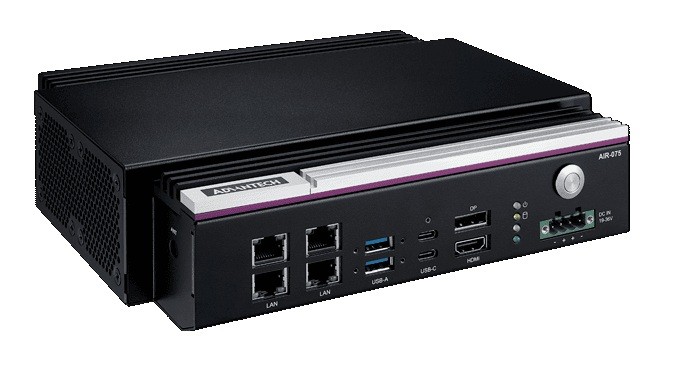

Edge AI System
// Edge AI System
// [Nvidia Jetson T4000 | Nvidia Jetson T5000]
// [64 GB | 128 GB] RAM
// 2 x Display
// 2 x Serial
// 4 x USB (Front page)
// 1 x USB (Back side)
// [2 | 4] x G-LAN (Front page)
// 3 x M.2 Slot
// 19 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech AIR-075
| General information | ||||
| SKU / Item Number | AIR-075 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Nvidia Jetson Thor Serie | ||
| Number | Nvidia Jetson T4000, Nvidia Jetson T5000 | |||
| CPU cores | 12 Pce, 14 Pce | |||
| Max Turbo Frequency | 2,6 GHz | |||
| Cache | 1 MB | |||
| Basic power consumption of the processor | 40 W | |||
| Maximum Turbo Power Consumption | 70 W, 130 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 64 GB, 128 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 512 GB, - | ||
| Graphics | ||||
| Processor | NVIDIA Blackwell | |||
| Cores | CUDA | 1536 Pce, 2560 Pce | ||
| Tensor | 64 Pce, 96 Pce | |||
| Performance | TFLOPS (FP4-Sparse) | 1.200, 2.070 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280 | |||
| Slot 4 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 (Gen. 5) | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Marvell AQC113 (2.5/5/10 Gbps) | |

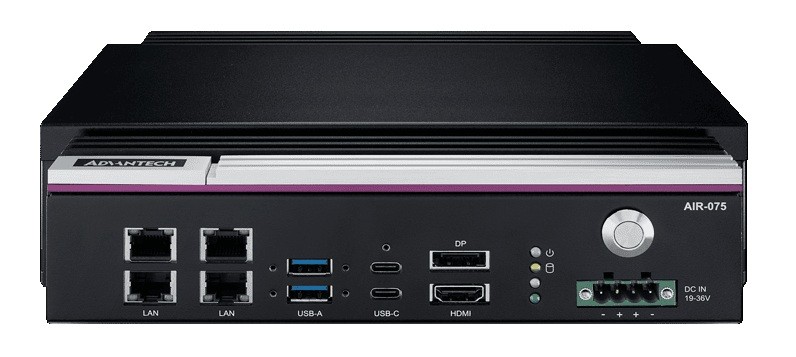

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 2 Pce | |||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| USB v3.2 (Gen 2, Type C) | 2 Pce | |||

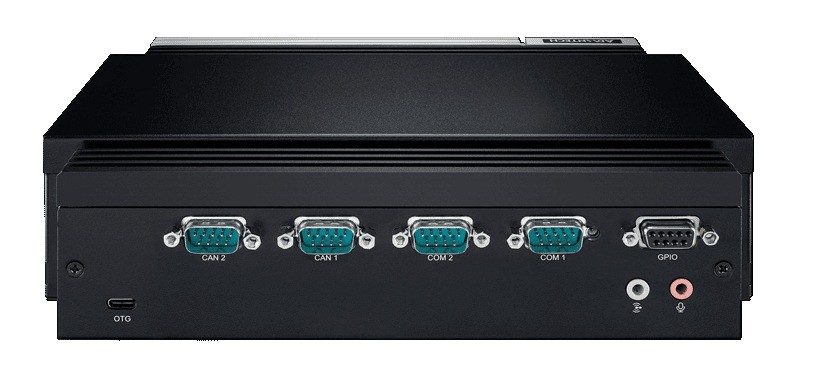

| Externe I/O (Rear Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB On-The-Go (USB OTG) | 1 Pce | ||
| CAN bus | Connector | -, DB-9 | ||
| piece | 2 Pce, - | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 19 to 36V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 19~36V | |||
| Typical power consumption | 12 W, 13,2 W | |||
| Maximum power consumption | 104 W, 156 W | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 40°C, -10°C to 50°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 235,8 mm | |||
| Deep | 175 mm | |||
| Height | 59 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 2890 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Gigabit Ethernet | 2 Pce | |||
| Color | Black / silver | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB | |||
| RoHS compliant | Yes | |||
