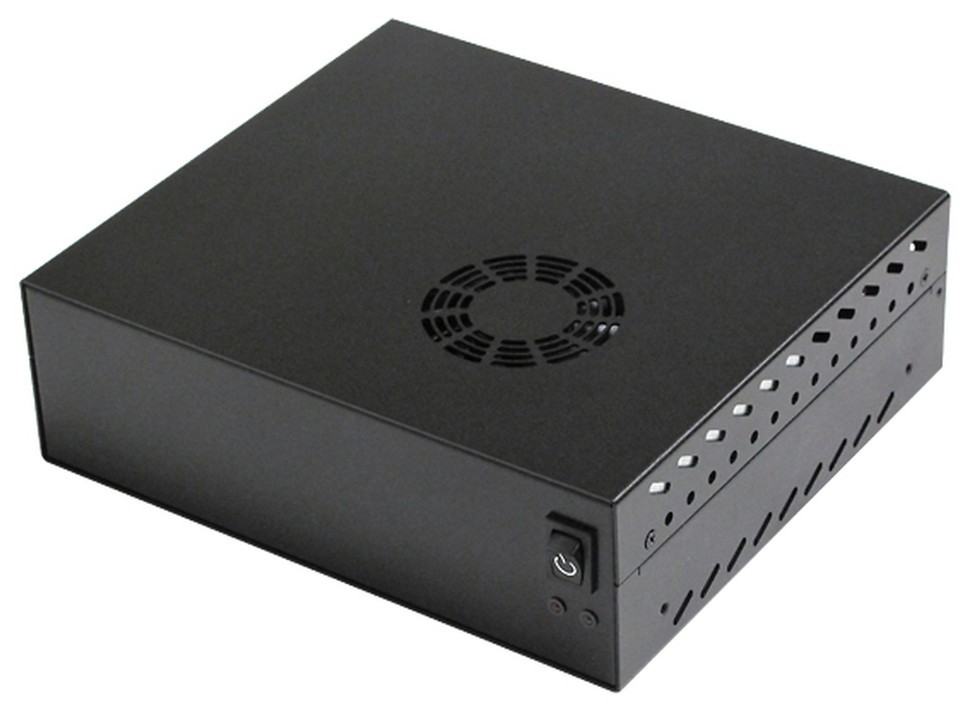

Embedded System
The product is EOL (End Of Life)!
// Embedded System
// Intel Celeron J1900
// 2 GHz
// Active (fan cooling) cooled
// 2 x Display
// 1 x Serial
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x Mini-PCIe
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: BCM BI255-1900J
| General information | ||||
| SKU / Item Number | BI255-1900J | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Celeron J1900 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 2 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1066 / 1333 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI SPI 32 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6776F | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| Full installation depth | Quantity | 1 Pce | ||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC892 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

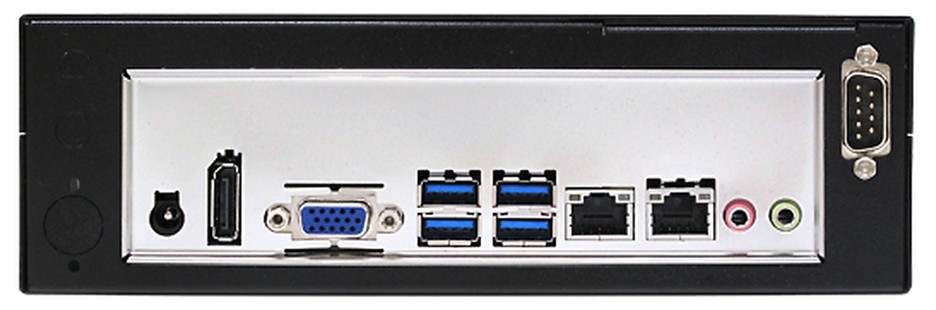

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 12V | |||
| Typical power consumption | 60 W | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 60 mm | |||
| Installation | internal | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Operation (SSD) | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 85%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 203 mm | |||
| Deep | 180 mm | |||
| Height | 64 mm | |||
| Weight | 1424 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
We are happy to advise you personally.
