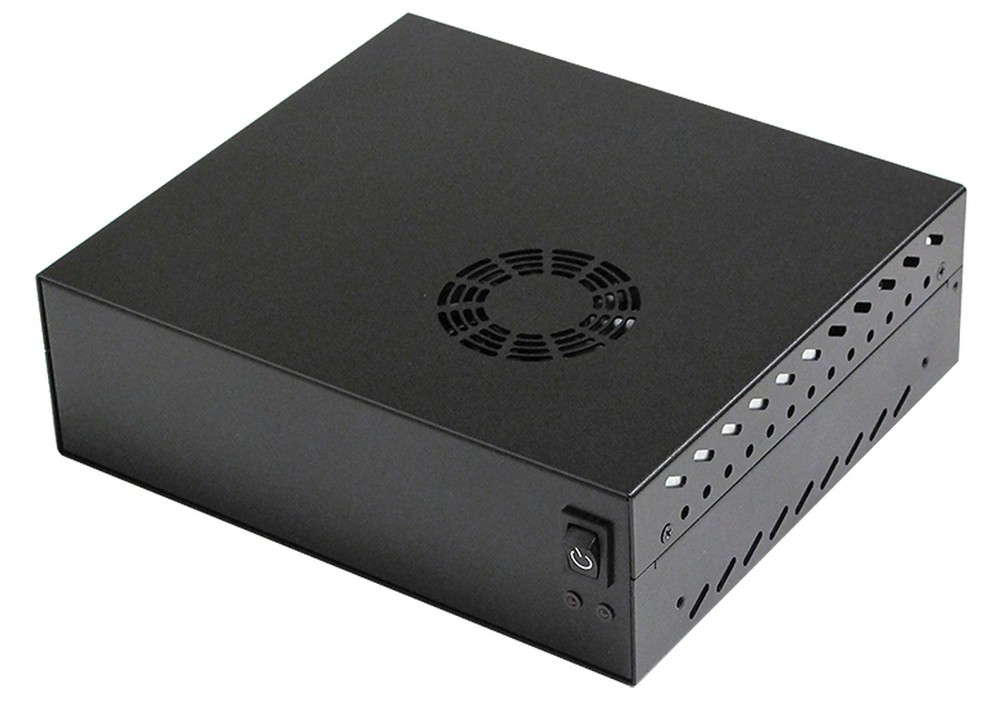

Embedded System
// Embedded System
// Intel Celeron N3350
// 1,1 GHz
// Active (fan cooling) cooled
// 3 x Display
// 1 x Serial
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: BCM BI255-3350N
| General information | ||||
| SKU / Item Number | BI255-3350N | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Celeron N3350 | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 2), USB 3.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×2, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | E, M | |||
| Audio | ||||
| Chipset | Realtek ALC887 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 4 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 60 mm | |||
| Installation | internal | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 85%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 203 mm | |||
| Deep | 180 mm | |||
| Height | 64 mm | |||
| Weight | 1424 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
We are happy to advise you personally.
