2.5 Motherboards
// 2.5" Industrial Motherboards
// [Intel Core 3 Prozessor 305 | Intel Core 5 Prozessor 320 | Intel Core 7 Prozessor 350]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

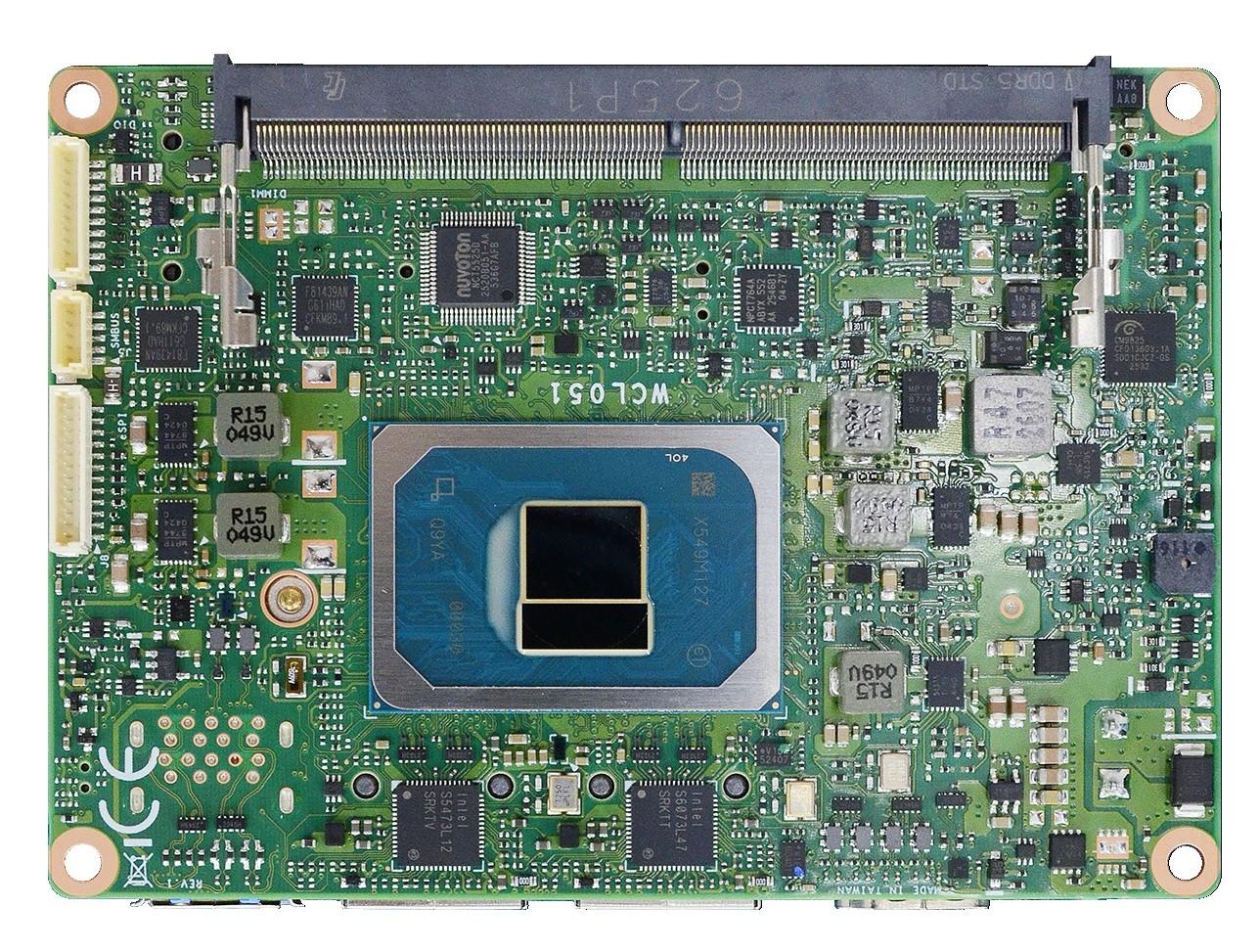

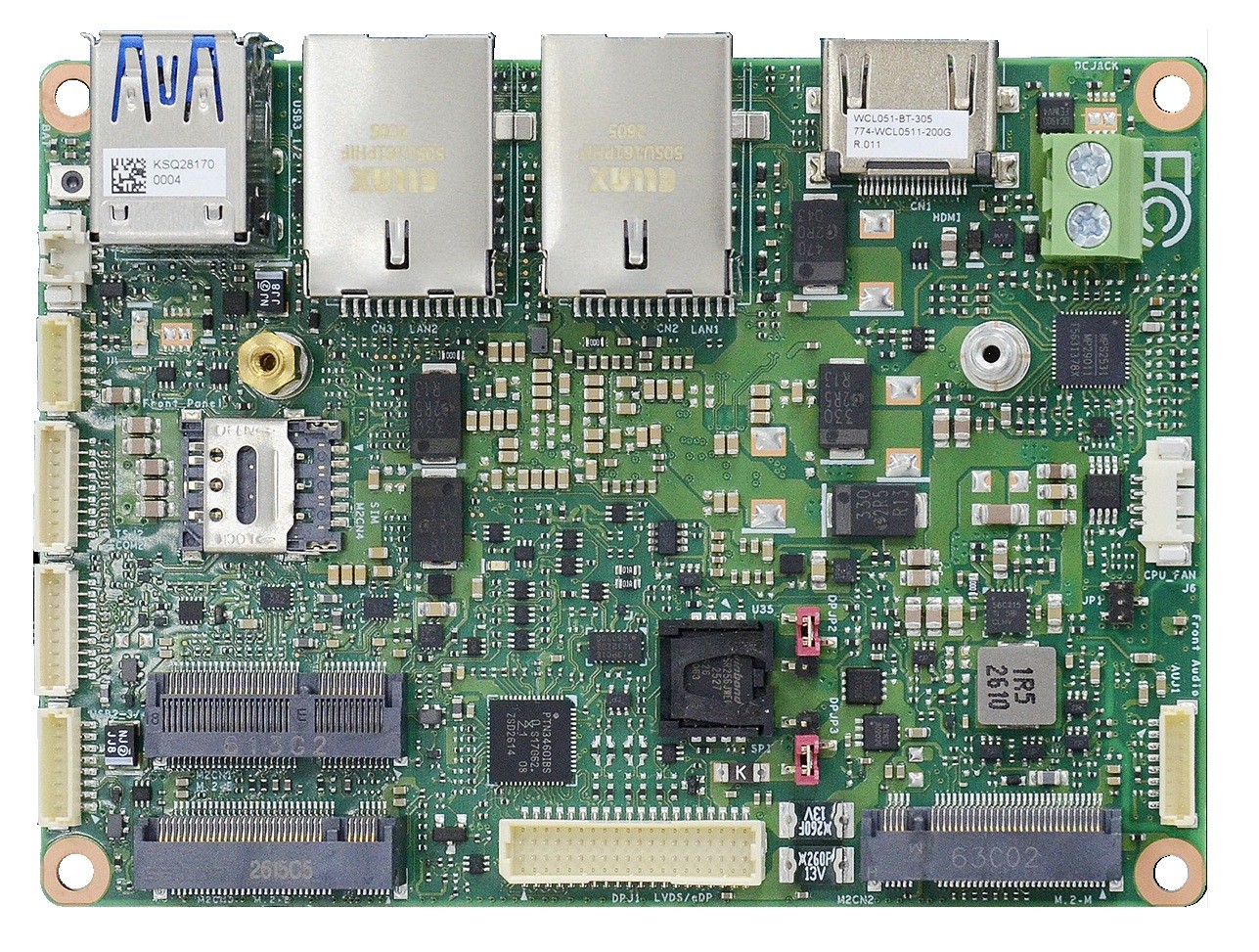

Basic Module: DFI WCL051
| General information | ||||
| SKU / Item Number | WCL051 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-WCL0511-000G, 770-WCL0511-100G, 770-WCL0511-200G | |||
| System | ||||
| Processor | Series | Intel Wildcat Lake | ||
| Number | Intel Core 3 Prozessor 305, Intel Core 5 Prozessor 320, Intel Core 7 Prozessor 350 | |||
| CPU cores | 6 Pce | |||
| Threads | 6 Pce | |||
| Socket | BGA 1516 | |||
| Performance core base clock frequency | 1,5 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,6 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 1,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,4 GHz, 3,6 GHz | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 35 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI BIOS | |||
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 2560 x 1440 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 4), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 4), USB 3.2 Gen 2 | |||
| Supported dimensions | 3042 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×2 (Gen 4) | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

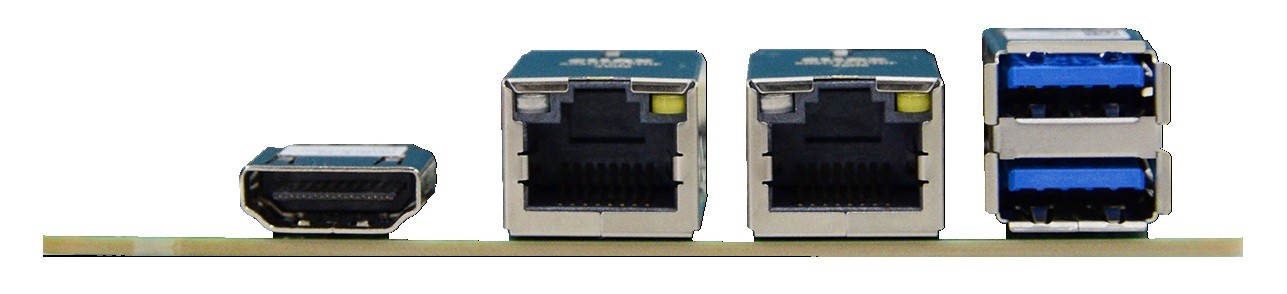

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (1.27 mm Pitch) | 2 Pce | |
| Serial | RS-232 | 1.00 mm pitch | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 2.5" | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Height | 27 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
