3.5 Motherboards
// 3.5" Industrial Motherboards
// [Intel Core Ultra 7 355 | Intel Core Ultra 7 356H | Intel Core Ultra X7 Processor 358H]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

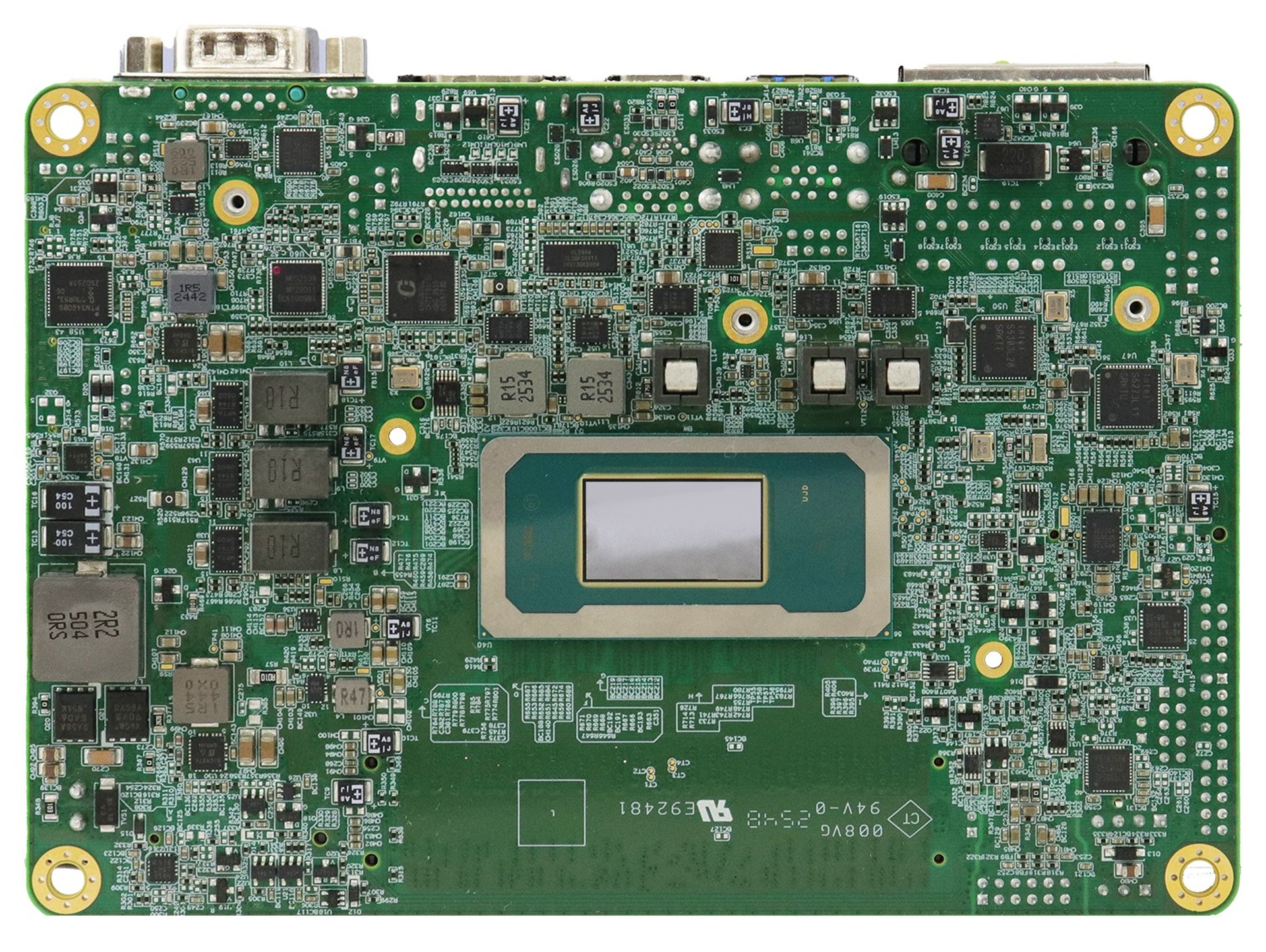

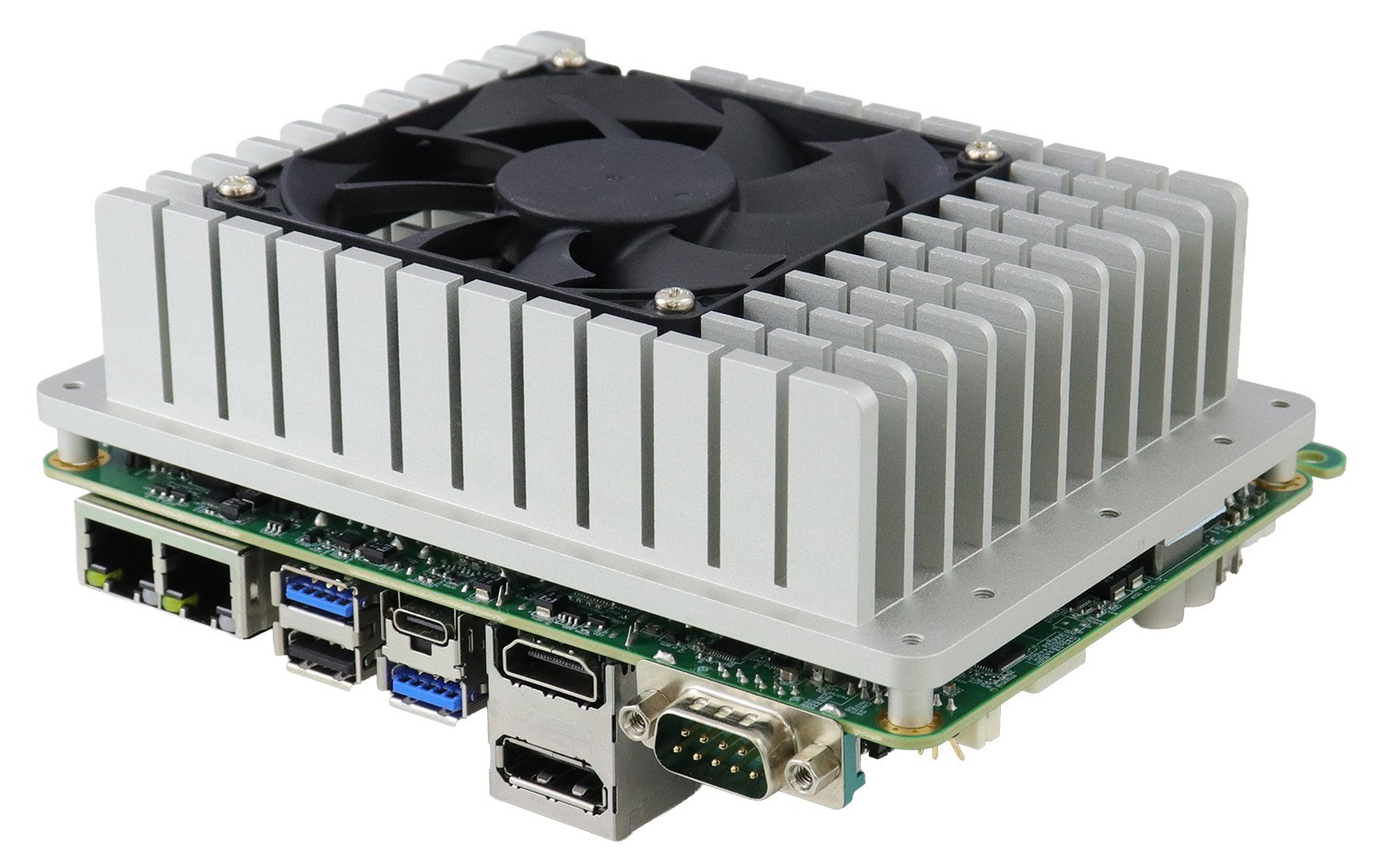

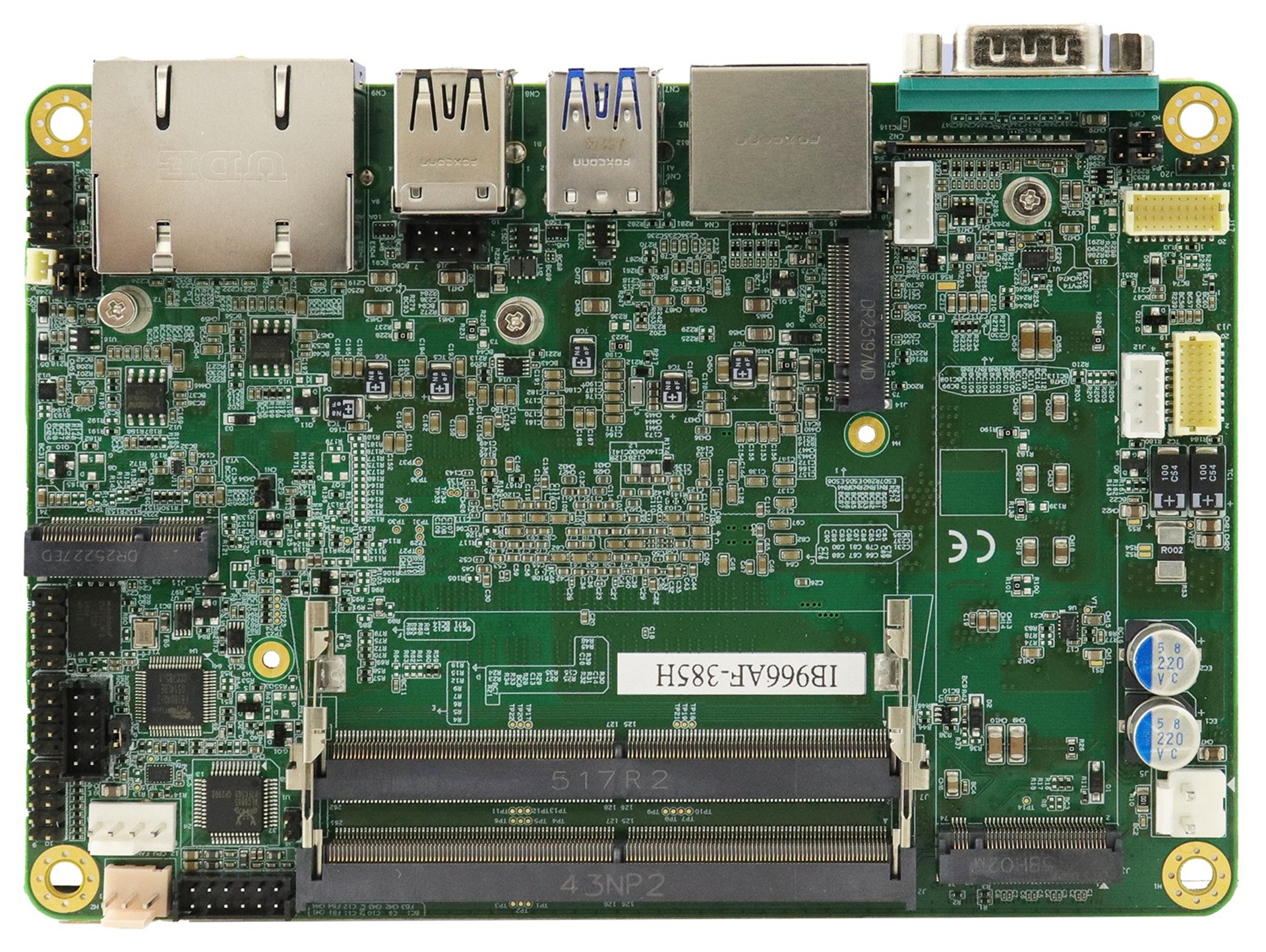

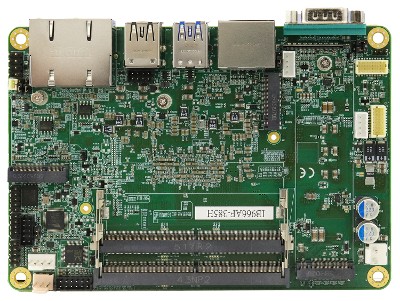

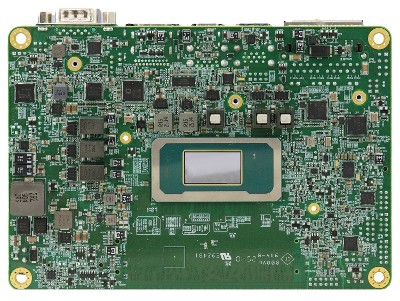

Basic Module: IBASE IB966
| General information | ||||
| SKU / Item Number | IB966 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Panther Lake | ||
| Number | Intel Core Ultra 7 355, Intel Core Ultra 7 356H, Intel Core Ultra X7 Processor 358H | |||
| CPU cores | 8 Pce, 16 Pce | |||
| Threads | 8 Pce, 16 Pce | |||
| Socket | BGA 2540 | |||
| Performance core base clock frequency | 1,9 GHz, 2,3 GHz | |||
| Performance Core Max Turbo Frequency | 4,7 GHz, 4,8 GHz | |||
| Efficient-core base clock frequency | 1,5 GHz, 1,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,5 GHz | |||
| Cache | 12 MB, 18 MB | |||
| Basic power consumption of the processor | 25 W | |||
| Maximum Turbo Power Consumption | 55 W, 80 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM/CSO-DIMM | |||
| DIMM data transfer rate | 7200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81804U-I | |
| Graphics | ||||
| Processor | Intel Arc B390, Intel Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2242 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface) | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

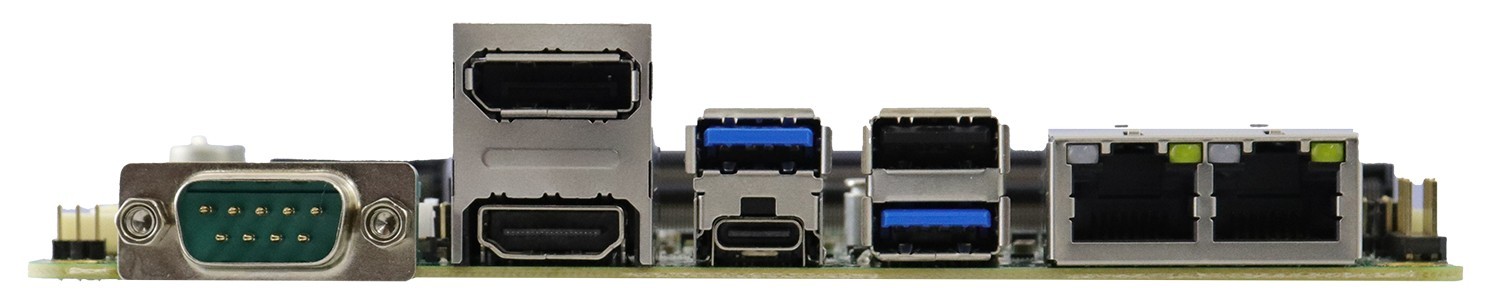

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LVDS connectors | 1 Pce | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin connector (horizontal) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 147 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
