3.5 Motherboards
// 3.5" Industrial Motherboards
// Rockchip RK3576
// Rockchip RK3576
// 8 GB
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 64 GB eMMC
// Power Supply ATX
// DC 12V
Sales only to business customers.
Delivery time: upon request

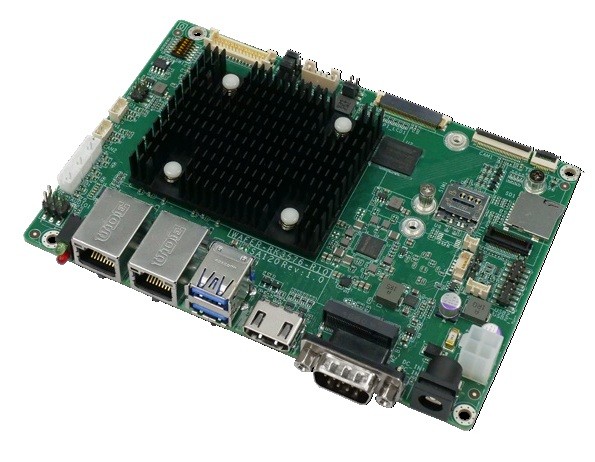

Basic Module: IEI WAFER-RK3576
| General information | ||||
| SKU / Item Number | WAFER-RK3576 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | WAFER-RK3576-CFD-R10 | |||
| System | ||||
| Processor | Series | ARM Cortex-A72 | ||
| Number | Rockchip RK3576 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,3 GHz | |||
| Processor 2 | Series | ARM Cortex-A53 | ||
| Number | Rockchip RK3576 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,2 GHz | |||
| Memory | Memory Type | DDR5 | ||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| AI / AI | ||||
| Performance | TOPS (INT8) | 6 | ||
| Graphics | ||||
| Processor | ARM Mali-G52 MP6 | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Version | 2.0 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2280, 3042, 3052 | |||
| M.2 Key IDs | B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| B2B | PCIe | |||

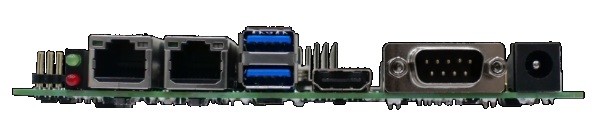

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Display | LVDS connectors | 1 Pce | ||
| Digital I/O | Bits | 4-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Lanes | 4 Pce | |||
| CAN bus | Channel | 2 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| DC | Wide Range | No | ||
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | ATX: 4-Pin ATX (12V DC), DC: 12V | |||
| Real-Time Clock (RTC) Battery | Batterie header | |||
| OS / Software | ||||
| Linux | Distribution | Debian 12 | ||
| Android | Release | 14 | ||
| Supported OS | Linux, Android | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Weight | 350 g | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
