// EPIC Industrial Motherboards
// AMD Ryzen AI Embedded X199
// SoC (System on a Chip)
// 64 GB
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 6 x Seriell I/O
// Digital I/O (12-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

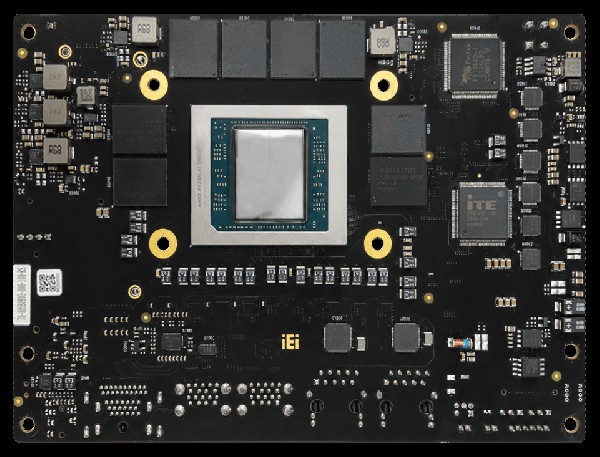

Basic Module: IEI NANO-X100
| General information | ||||
| SKU / Item Number | NANO-X100 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen AI Embedded X100 Series | |||
| Number | AMD Ryzen AI Embedded X199 | |||
| CPU cores | 16 Pce | |||
| Threads | 32 Pce | |||
| Socket | BGA 2049 | |||
| Base frequency | 3 GHz | |||
| Max Turbo Frequency | 5,1 GHz | |||
| Cache | 16 MB | |||
| Thermal Design Power (TDP) | 55 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 8533 MT/s | |||
| Internal memory | 64 GB | |||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | AMD Radeon Graphics | |||
| Performance | TOPS (INT8) | 50 | ||
| Screens (Multi-display) | 2 displays | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 2242, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Internal I/O | ||||
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Digital I/O | Bits | 12-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | EPIC | ||
| Width | 115 mm | |||
| Deep | 165 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
