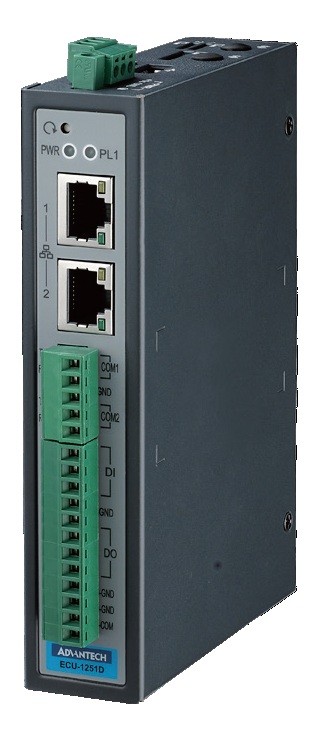

Advantech ECU-1251D

Industrial IoT Gateways

PRODUCT FEATURES

// Advantech
// ECU-1251D
// ECU-1251D-R10AA

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech ECU-1251D

General information
	SKU / Item Number			ECU-1251D
Product Basic Data
	Manufacturer			Advantech
	Product ID			ECU-1251D-R10AA
System
	Processor	Series		ARM Cortex-A8
		Base frequency		0,6 GHz
	Chipset			SoC (System on a Chip)
	Memory	Memory Type		DDR3
		Internal memory		256 MB
	Storage	Embedded MultiMedia Card (eMMC)		512 MB
	Power supply - Input			Embedded MultiMedia Card (eMMC) 512 MB
Extension
	Mini-PCIe	Full installation depth	Quantity	1 Pce
			USB support	Yes
	PCIe Interfaces			1x Mini-PCIe
	SIM	Quantity		2 Pce
		Form Factor (Slot)		Nano SIM
	Storage			Micro SD (external)
Network
	Software Features			Modbus TCP for industrial integration

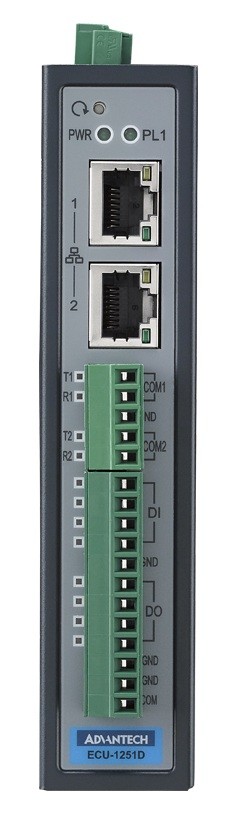

Externe I/O (Front Panel)
	Ethernet	RJ-45		2 Pce
	Serial	RS-485	2-pin terminal connector	2 Pce
	Digital I/O	Quantity		2 Pce
		Bits		4-bit
		Connector		10-pin terminal connector
	USB	USB 2.0		1 Pce
Power Supply
	Typ (Input)	DC	Wide Range	Yes
			Range	10-30V
			Connector	3-pin terminal connector
	Power supply - Input			DC: 10~30V
	Typical power consumption			2,5 W
Mechanical / Environment
	Temperature	Operation		-40°C to 70°C
		Storage		-40°C to 85°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Width		96,5 mm
		Deep		30 mm
		Height		140 mm
	Controls	Reset		1 Pce
	Status indicators	Power		1 Pce
		System Status		1 Pce
	Antenna holes			2 Pce
	Color			Dark grey
	Mounting option			DIN Rail, Wall Mount
Certificates / Conformities
	CE			Yes
	FCC	Class A		Yes
	Additional certificates / compliance approvals			IEC-60870-5-104
	RoHS compliant			Yes
