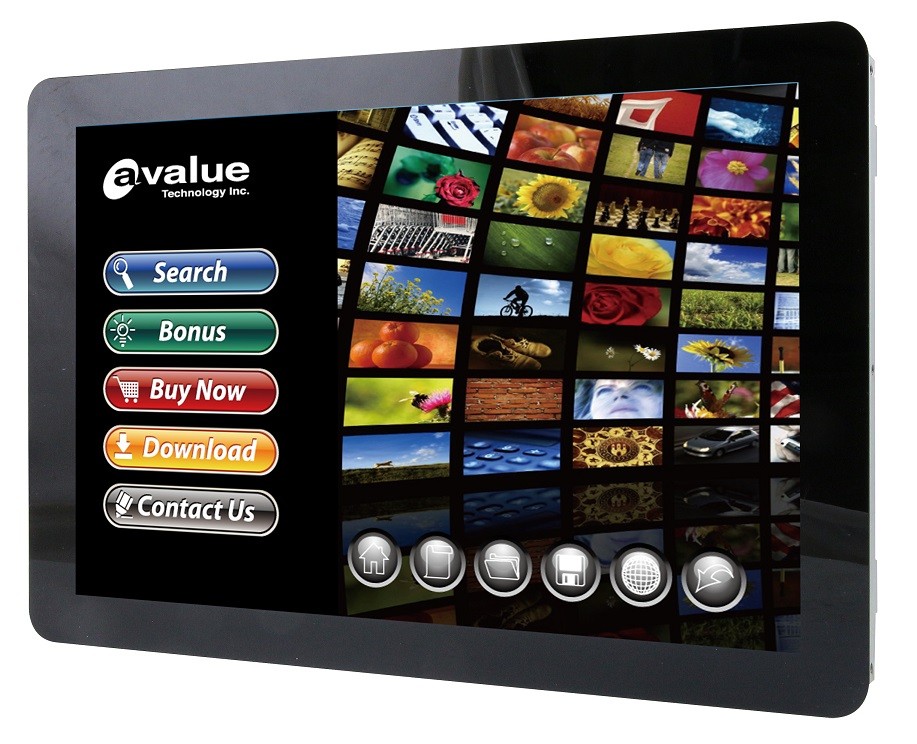

Open Frame Panel PC
// 10.1" TFT LCD Panel-PC
// [Intel Atom x7211E | Intel N50]
// Touchscreen (Capacitive)
// SoC (System on a Chip)
// 8 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// 64 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Avalue OFT-10WAD
| General information | ||||
| SKU / Item Number | OFT-10WAD | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Atom x7211E, Intel N50 | |||
| CPU cores | 2 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 10.1" TFT LCD | |||
| Max. Resolution | 1280 x 800 | |||
| Aspect Ratio | 8 : 5 | |||
| Contrast | 1000:1 | |||
| Luminance | 350 cd/m² | |||
| Viewing angle | Horizontal | 175 ° | ||
| Vertical | 175 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 25 h | |||
| Touch Screen | Type | Capacitive | ||
| Multitouch | 10-point | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| Storage | Micro SD | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax | |
| Network | Wi-Fi | |||

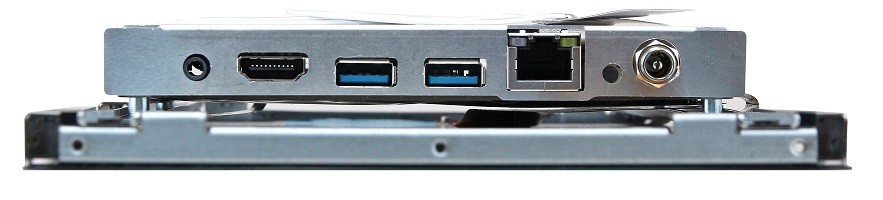

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 2 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | MIPI-DSI (Display Serial Interface) | 1 Pce | ||
| Audio | Mic-In | 1 Pce | ||
| Verstärker | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 10.1" | ||
| Width | 252 mm | |||
| Deep | 30,6 mm | |||
| Height | 165,8 mm | |||
| Weight | 780 g | |||
| Controls | Power | 1 Pce | ||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | -, is supported | ||
| Windows 11 | -, Supported | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
