Panel PC for Terminal/POS
The product is EOL (End Of Life)!

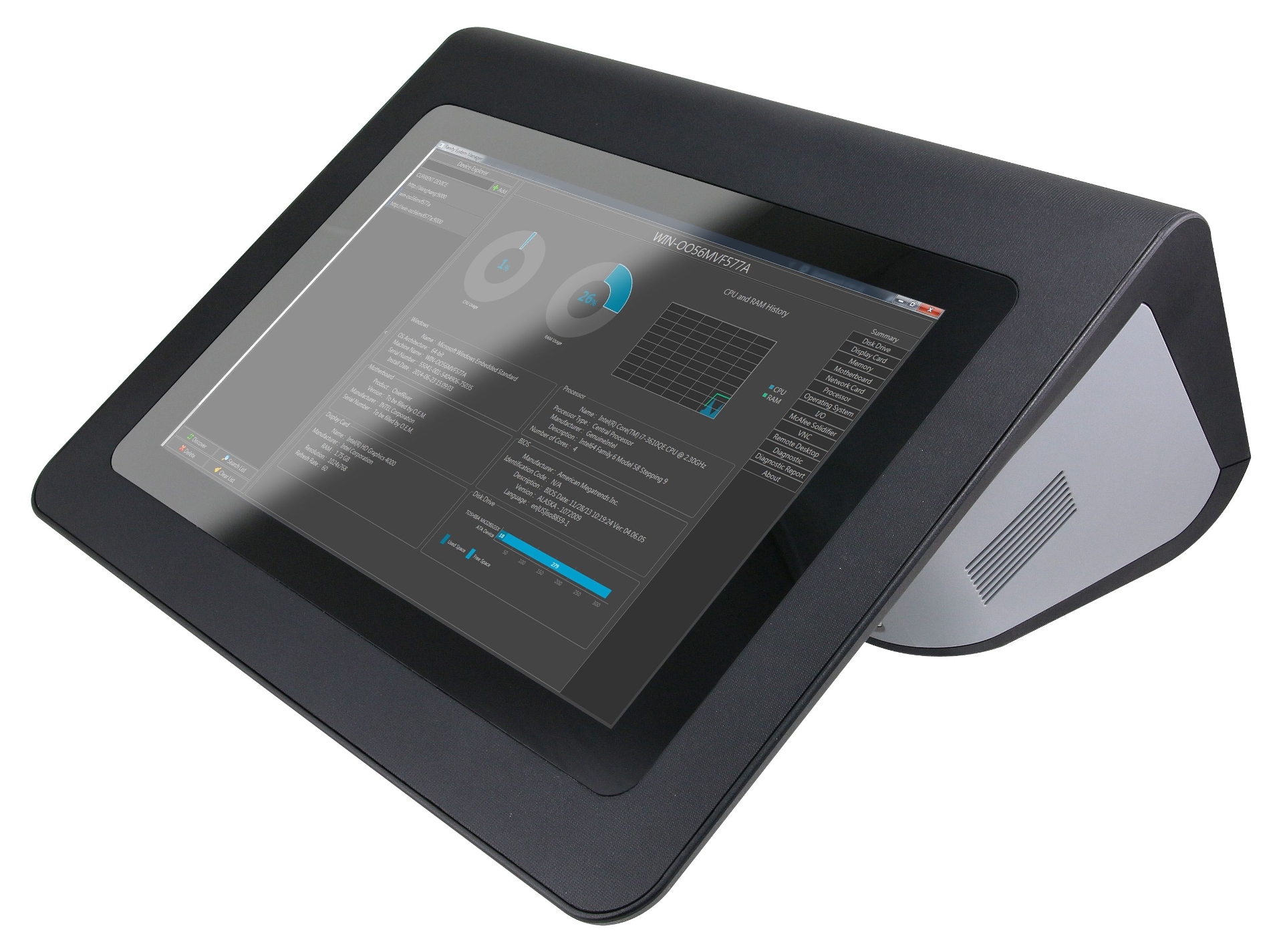

// 10.1" TFT LCD Panel-PC
// Intel Atom Z3735F
// Touchscreen (Capacitive)
// Passive cooled
// 2 GB
// 1 x G-LAN (Back side)
// 4 x USB (Back side)
// 32 GB eMMC
// Power Supply DC 19V
Sales only to business customers.
Delivery time: upon request
Basic Module: BCM RIPAC-10P1
| General information | ||||
| SKU / Item Number | RIPAC-10P1 | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom Z3735F | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 592 | |||
| Base frequency | 1,33 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 2,2 W | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Display | ||||
| Display Typ | 10.1" TFT LCD | |||
| Max. Resolution | 1280 x 800 | |||
| Aspect Ratio | 8 : 5 | |||
| Touch Screen | Type | Capacitive | ||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11b/g/n | |
| Bluetooth | Type | v4.0 | ||
| RFID | Type | ISO/IEC 14443 A/B, 15693/18092 | ||
| Network | Wi-Fi, Bluetooth, RFID | |||

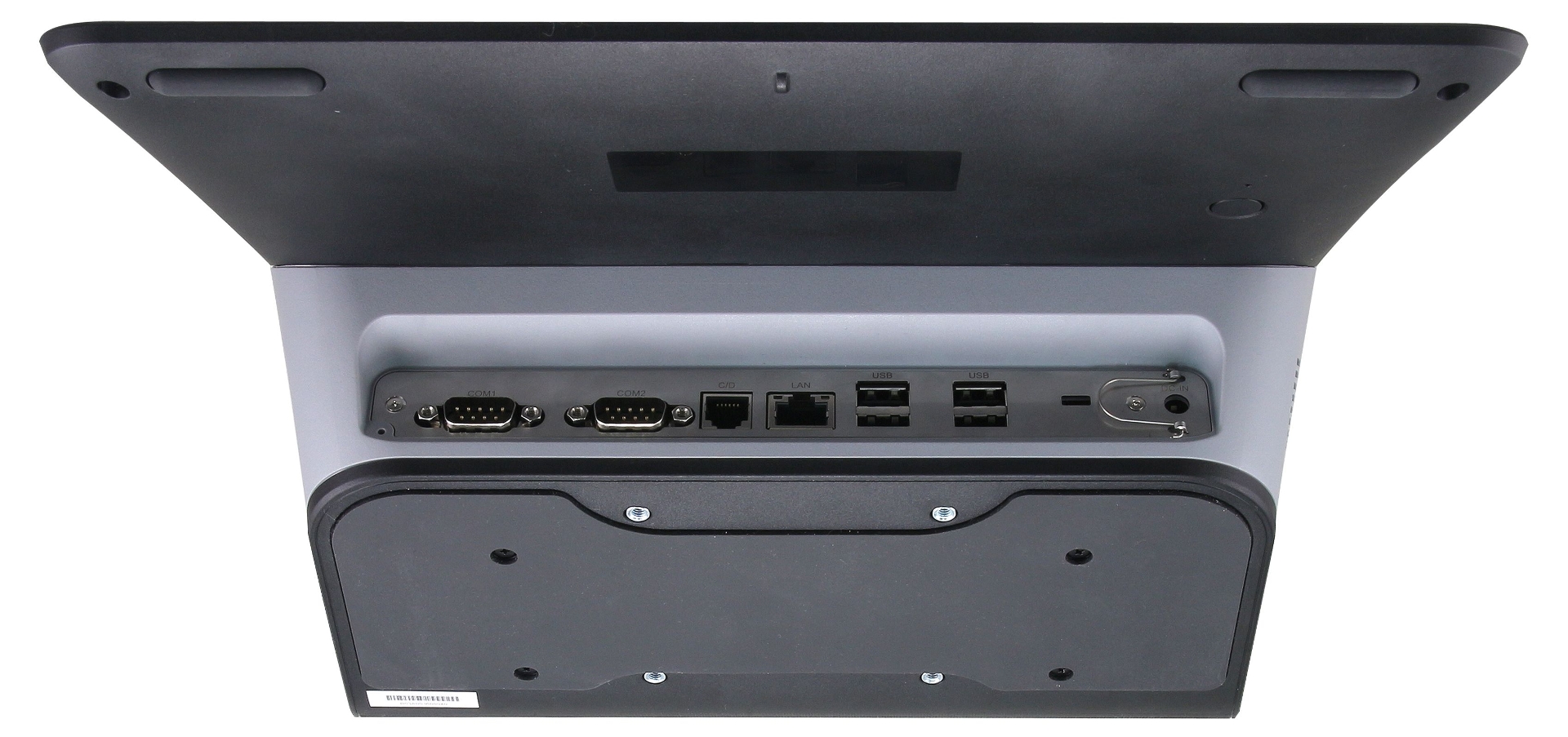

| Externe I/O (Rear Panel) | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 4 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Range | 19V | |
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 19V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -10° to 65°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 10.1" | ||
| Width | 316 mm | |||
| Deep | 299 mm | |||
| Height | 149 mm | |||
| Vibration | Vibration | 1.5G, 5-500Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 3000 g | |||
| Controls | Power | 1 Pce | ||
| Color | Black | |||
| OS / Software | ||||
| Windows | Windows 8 (32-bit) | is supported | ||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Linux | Kernel | 4.4 | ||
| Android | Release | 15.10 | ||
| Supported OS | Windows, Linux, Android | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
