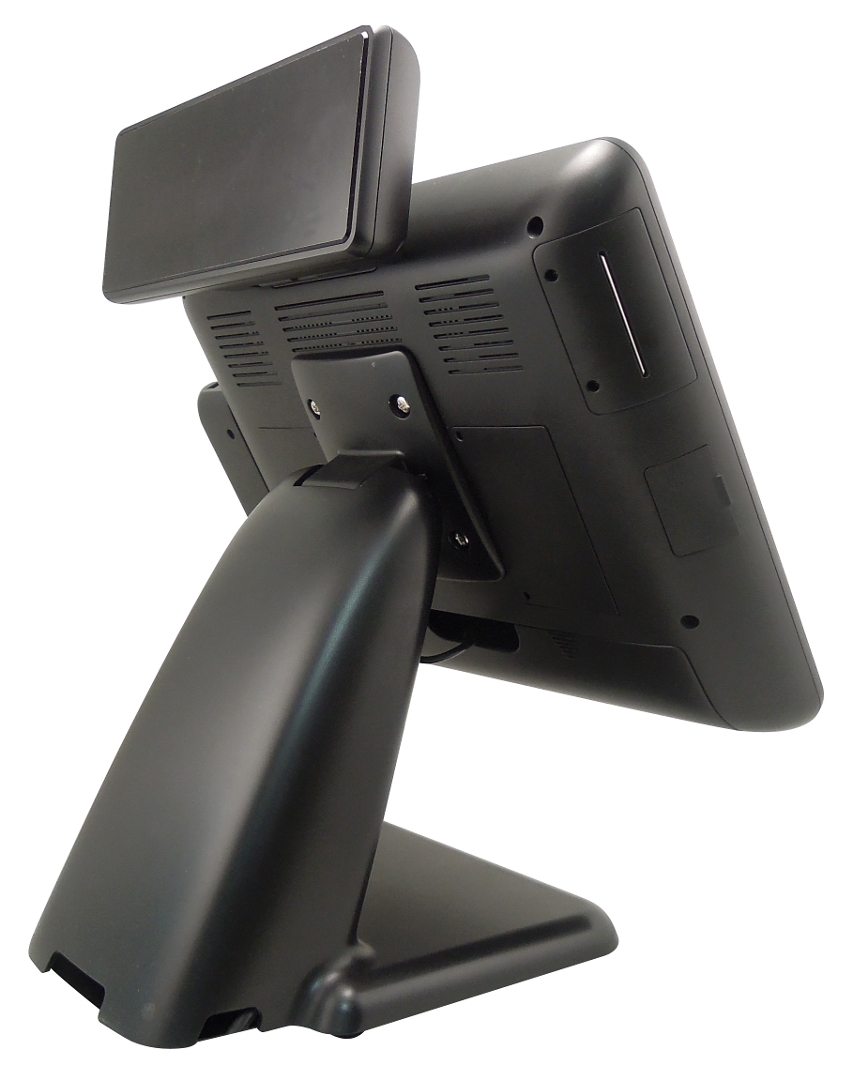

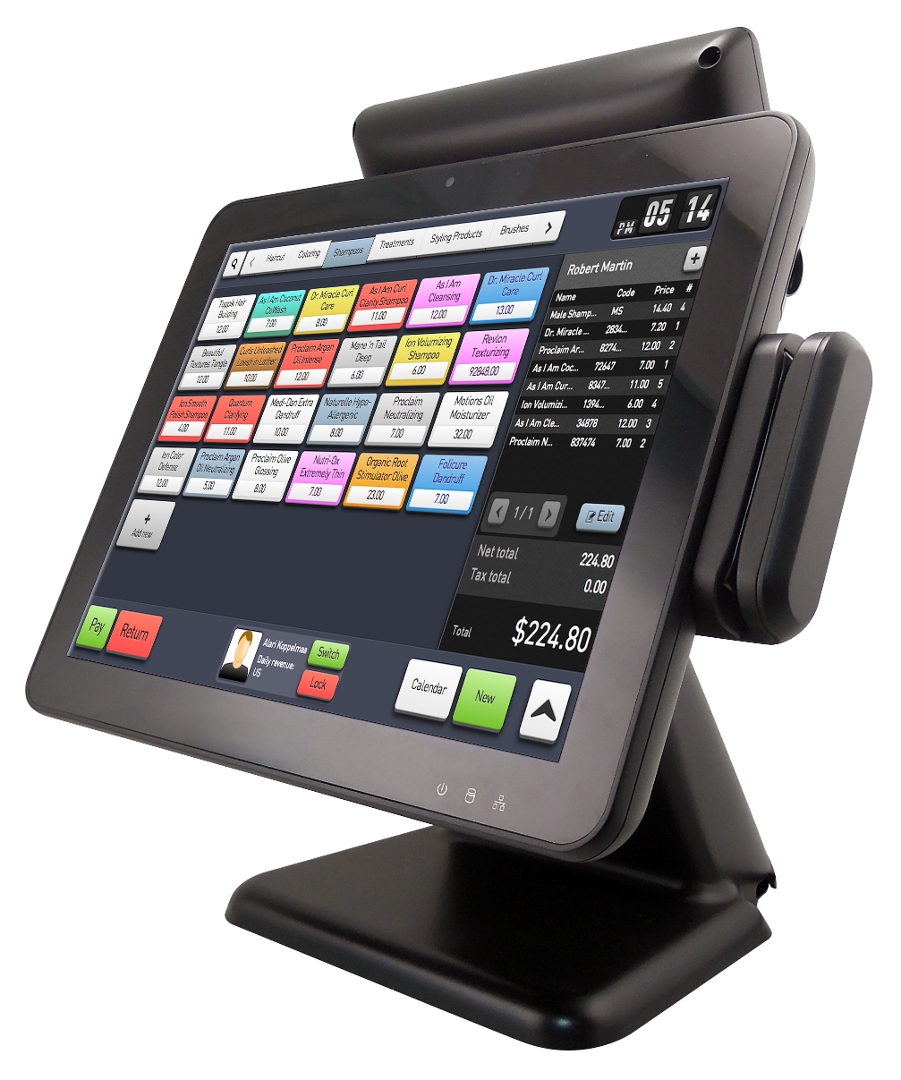

Panel PC for Terminal/POS
The product is EOL (End Of Life)!
// 15" TFT LCD Panel-PC
// Intel Atom E3845
// Passive cooled
// IP65 (front) / IP41 (back)
// SoC (System on a Chip)
// 240-pin DDR3L DIMM
// LVDS
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// 1 x Mini-PCIe
// Power Supply DC 19 to 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: BCM RITY152
| General information | ||||
| SKU / Item Number | RITY152 | |||
| Product Basic Data | ||||
| Manufacturer | BCM | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3845 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,91 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 240-pin DDR3L DIMM | ||
| Frequency | 800 / 1066 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 2 GB | |||
| Storage | Hard Drive (HDD) | Quantity | 1 Pce | |
| Form factor | 2.5" | |||
| Capacity | 320 GB | |||
| Power supply - Input | 1 x 2.5" Hard Drive (HDD) 320 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1024 x 768 at 60 Hz | ||
| Display | ||||
| Display Typ | 15" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.2M | |||
| Contrast | 700:1 | |||
| Luminance | 400 cd/m² | |||
| Viewing angle | Horizontal | 80 ° | ||
| Vertical | 70 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Touch Screen | Interface | USB | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 3 Pce | |
| USB | USB 2.0 | 3 Pce | ||
| USB 3.0 | 3 Pce | |||
| Internal I/O | ||||
| Display | LVDS connectors | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 19 to 24V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 19~24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -10° to 65°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 15-inch | ||
| Width | 290 mm | |||
| Deep | 362 mm | |||
| Height | 51 mm | |||
| IP Rating | IP65 (front) / IP41 (back) | |||
| Vibration | Vibration | 1.5G, 5-500Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 6000 g | |||
| Controls | Power | 1 Pce | ||
| Color | Black | |||
| Mounting option | VESA, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Linux | Kernel | 4.4 | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | VCCI | |||
