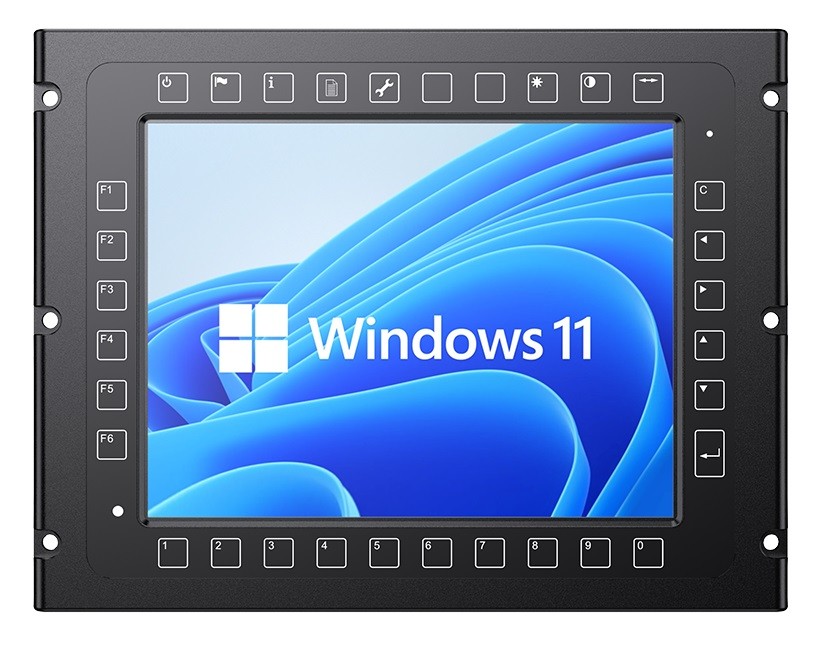

Tram Control Panel
// 10.4" TFT LCD Panel-PC
// Intel Atom X7433RE
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front)
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// [128 GB | -] SSD (mSATA)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 8 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

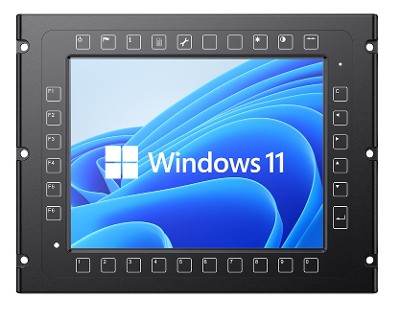

Basic Module: Darveen TVP-310
| General information | ||||
| SKU / Item Number | TVP-310 | |||
| Product Basic Data | ||||
| Manufacturer | Darveen | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7433RE | |||
| CPU cores | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 9 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB, - | |||
| Storage | Solid State Drive (mSATA) | 128 GB, - | ||
| BIOS | AMI UEFI BIOS | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Display | ||||
| Display Typ | 10.4" TFT LCD | |||
| Max. Resolution | 1024 x 768 | |||
| Aspect Ratio | 4 : 3 | |||
| Max. Colors | 16.7 million | |||
| Contrast | 1000:1 | |||
| Luminance | 1000 cd/m² | |||
| Viewing angle | Horizontal | 176 ° | ||
| Vertical | 176 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax | |
| Bluetooth | Type | v5.4 | ||
| Cellular Network | Network | 4G | ||
| GNSS (Global Navigation Satellite System) | GPS | |||

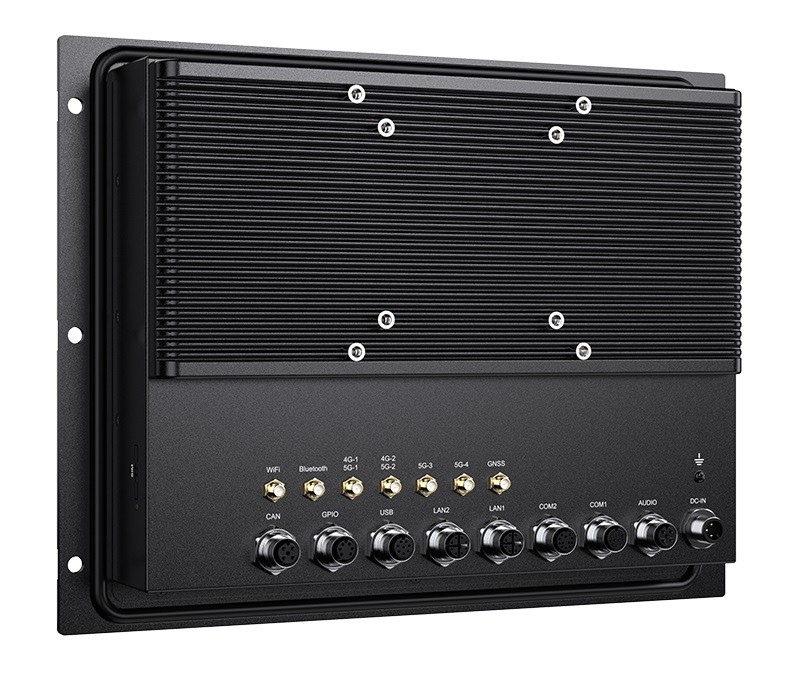

| Externe I/O (Rear Panel) | ||||
| Audio | M12 | 1 Pce | ||
| Ethernet | M12 connectors | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | M12 connectors | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 4-bit | |||
| Connector | M12 | |||
| USB | USB 2.0 | 2 Pce | ||
| M12 connectors | Yes | |||
| CAN bus | Connector | M12 | ||
| piece | 2 Pce | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 8 to 36V | |||
| Connector | M12 | |||
| Power supply - Input | DC: 8–36V | |||
| Typical power consumption | 18 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 70°C | ||
| Storage | -40°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 10.4" | ||
| Width | 305 mm | |||
| Deep | 65 mm | |||
| Height | 235 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Reference Standard | MIL-STD-810H Method 514.8 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810H Method 516.8 Procedure I | ||
| Weight | 3600 g | |||
| Controls | Power | 1 Pce | ||
| SMA connector | 4 Pce, - | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 55015 | |||
| RoHS compliant | Yes | |||
