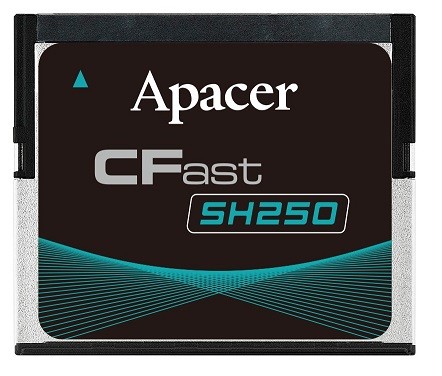

Apacer SH250-CFast

AA2.259FYA.001H8, AA2.259FZA.001H8, AA2.259G3A.002BQ, AA2.259G3B.001BQ, AA2.259GYA.001H8, AA2.259GZA.001H8, AA2.259H3A.001CW, AA2.259H3B.001CW, AA2.259HYA.001H8, AA2.259HYA.002BH, AA2.259HZA.001H8, AA2.259HZA.002BH, AA2.259J3A.001CW, AA2.259J3B.001CW, AA2.259JYA.001H8, AA2.259JYA.002BH, AA2.259JZA.001H8, AA2.259JZA.002BH, AA2.259K3A.001CW, AA2.259K3B.001CW, AA2.259KYA.001H8, AA2.259KYA.002BH, AA2.259KZA.001H8, AA2.259KZA.002BH, AA2.259LYA.001BH, AA2.259LZA.001BH, AA2.259HYA.002F8, AA2.259HZA.002F8, AA2.259JYA.002F8, AA2.259JZA.002F8, AA2.259KYA.002F8, AA2.259KZA.002F8, AA2.259LYA.001F8, AA2.259LZA.001F8

CFast

PRODUCT FEATURES

// CFast
// 3D TLC
// SATA 3
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Apacer SH250-CFast

General information
SKU / Item NumberSH250-CFastAA2.259HYA.002F8, AA2.259HZA.002F8, AA2.259JYA.002F8, AA2.259JZA.002F8, AA2.259KYA.002F8, AA2.259KZA.002F8, AA2.259LYA.001F8, AA2.259LZA.001F8, AA2.259FYA.001H8, AA2.259FZA.001H8, AA2.259GYA.001H8, AA2.259GZA.001H8, AA2.259HYA.001H8, AA2.259HZA.001H8, AA2.259JYA.001H8, AA2.259JZA.001H8, AA2.259KYA.001H8, AA2.259KZA.001H8, AA2.259HYA.002BH, AA2.259HZA.002BH, AA2.259JYA.002BH, AA2.259JZA.002BH, AA2.259KYA.002BH, AA2.259KZA.002BH, AA2.259LYA.001BH, AA2.259LZA.001BH, AA2.259G3A.002BQ, AA2.259H3A.001CW, AA2.259J3A.001CW, AA2.259K3A.001CW, AA2.259G3B.001BQ, AA2.259H3B.001CW, AA2.259J3B.001CW, AA2.259K3B.001CW
Product Basic Data
ManufacturerApacer
Flash storage media
Connection (Interface)SATA 3
Flash structureCFast
Flash type3D TLC
Write/Erase cycles (P/E limit)100000
Capacity10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Temperature sensorYes
Hardware Write Protection-, Yes
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 100°C
DimensionsForm factorCFast
Width42,8 mm
Deep36,45 mm
Height3,6 mm
ShockMeasurement Data50G, 0.5 ms
Reference StandardMIL-STD-810G
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
