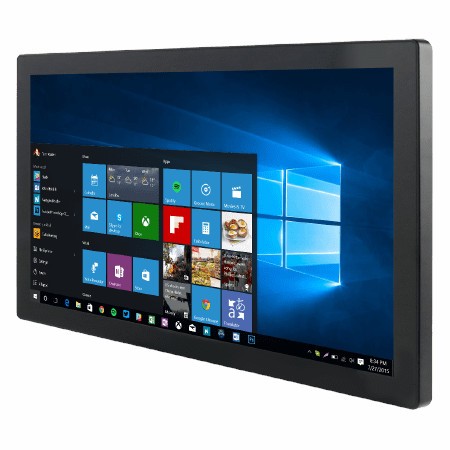

Panel PC with IP65 (Front Side)
// 24-inch TFT LCD Panel-PC
// Intel Core i5-1135G7
// Touchscreen (Capacitive)
// Passive cooled
// IP65 (front)
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 128 GB SSD (NVMe)
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: Winmate W24IT7T-GCA2
| General information | ||||
| SKU / Item Number | W24IT7T-GCA2 | |||
| Product Basic Data | ||||
| Manufacturer | Winmate | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Tiger Lake | |||
| Number | Intel Core i5-1135G7 | |||
| CPU cores | 4 Pce | |||
| Threads | 8 Pce | |||
| Socket | BGA 1449 | |||
| Max Turbo Frequency | 4,2 GHz | |||
| Cache | 8 MB | |||
| Thermal Design Power (TDP) | 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Display | ||||
| Display Typ | 24-inch TFT LCD | |||
| Max. Resolution | 1920 x 1080 | |||
| Aspect Ratio | 16 : 9 | |||
| Contrast | 3000:1 | |||
| Luminance | 250 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Touch Screen | Type | Capacitive | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 12V | |||
| Maximum power consumption | 120 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 24-inch | ||
| Width | 588 mm | |||
| Deep | 66 mm | |||
| Height | 358 mm | |||
| IP Rating | IP65 (front) | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 Procedure I | ||
| Shock | Reference Standard | MIL-STD-810G Method 516.6 Procedure I | ||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black | |||
| Material | plastic, Steel | |||
| Mounting option | Panel Mounting, VESA | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Windows, Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
